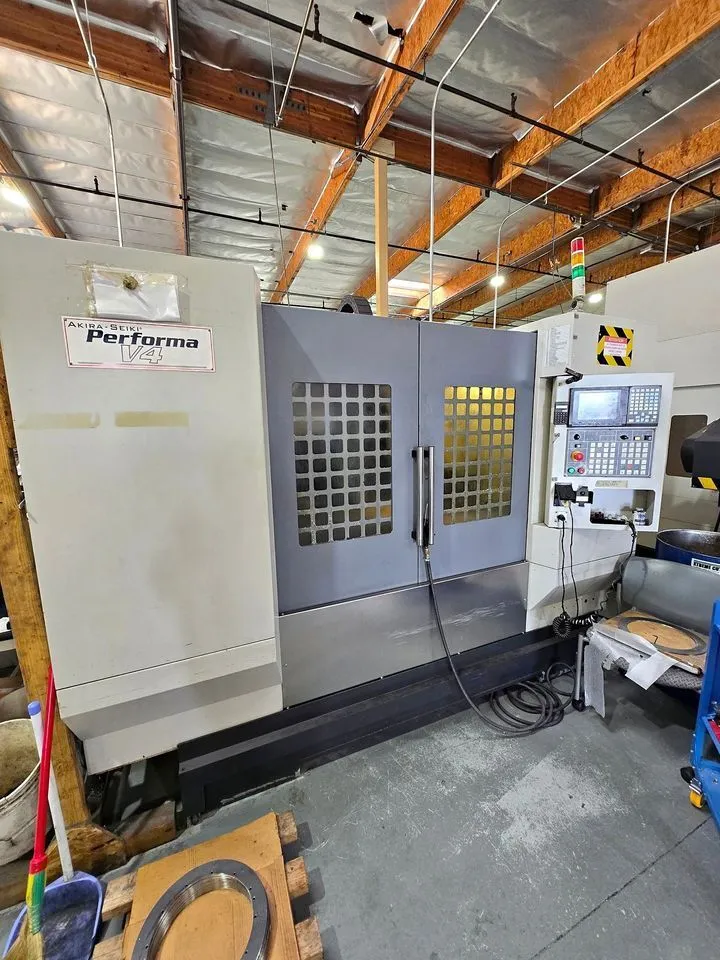

Akira Seiki V4 Vertical Machining Center (2009)

Axes Movement:
X-Axis, Table In Longitudinal Movement: 41.3"
Y-Axis, Saddle In Cross Movement: 19.8"
Z-Axis, Head In Vertical Movement: 22.0"
Between Spindle Nose/Table Surface: 3.0"-25.0"
Between Center Line Of Spindle To Column: 21.7"

Table
Work Surface: 37.4" x 19"
Maximum Table Load: 2,866 lbs
T-Slots: 5 ea. x 18 mm
Height From Floor: Approx. 35.0"

Ball Screw:
X-Axis Double Anchor / Double Nut / Constant Tension:40 mm DIA
Y-Axis Double Anchor / Double Nut / Constant Tension:40 mm DIA
Z-Axis Double Anchor / Double Nut / Constant Tension:40 mm DIA

Rapid Traverse (X & Y Axes / Z Axis): 1,575"/984" /min
Cutting Feedrate (X, Y, & Z Axes): 394" /min
(Can Be Overridden 0 - 150%; In 10% Increments)
