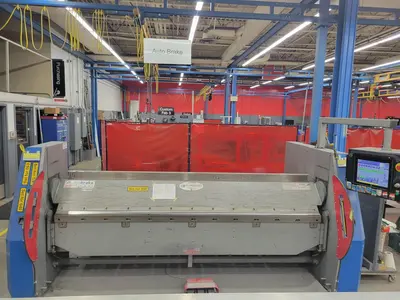

Roper Whitney AB1014KT2 CNC Folding Machine (2008)

Roper Whitney AB1014KT2 CNC Folding Machine (2008)

Working Capacities
Maximum Working Length 122.0 in. (3100 mm)
Bending Angle Range 3 - 145
Bending Accuracy 1
Maximum Jaw Opening 5.3 in. (135 mm)
Folding Beam Adjustment 2.0 in. (50 mm)
Backgauge Specifications
Positioning Range 0 - 61in. (0 - 1550 mm)
Positioning Accuracy +/- 0.004 in. ( .1 mm)
Maximum Sheet Weight 200 lbs. (91 kg)
Electrical Data
Voltage 230 VAC, 3-Phase, 60 Hz.
Current 7 Amps
Service 15 Amps
Bending Motor HP 2.0
Clamping Motor HP 2.0
Dimensions: 177" x 88" x 92"
Weight: 10470 Lbs

Capacities are based on the use of the standard .79 inch
(20mm) bending blade. When a thinner bending blade is
used, bending capacity must be derated as shown in table
below:

.39 inch (10mm) blade thickness: Factor 50%, approx 6
gauges sizes (20 gauge mild steel)

.28 inch (7mm) blade thickness: Factor 35%, approx. 10
gauge sizes (24 gauge mild steel).

The Autobrake 2000 is a mechanically powered CNC
controlled bending and folding machine designed to
handle light gauge mild steels. The machine's
metal folding system is based on two concepts.
First is sequential bending process production:
the ability to form complete parts without having to
remove the workpiece from the machine.
Second is automated operation: every key function
is CNC controlled and motor-driven, providing efficiency,
precision, and reduced labor effort.
