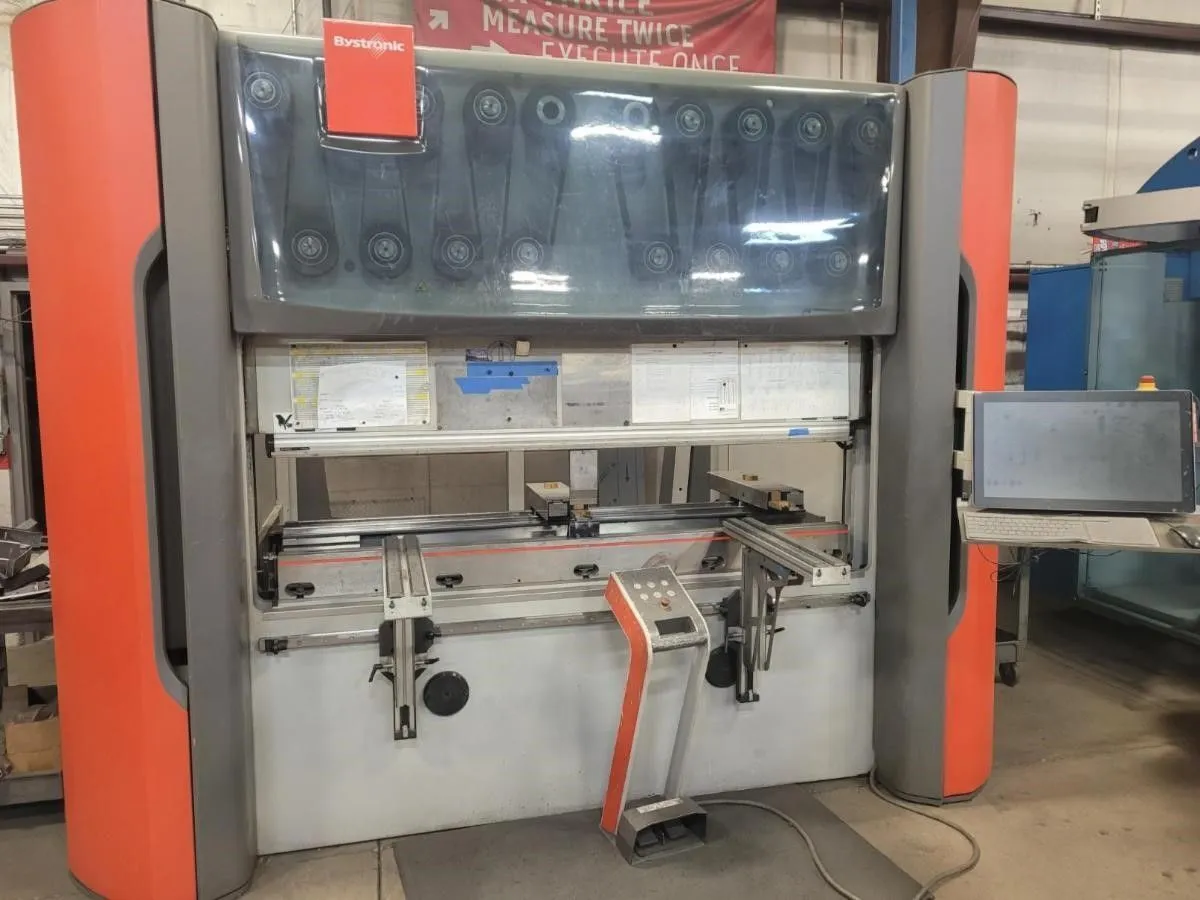

Bystronic Xcite 80E Electric CNC Press Brake (2013)
Have one to sell?
ConditionUsed
1 available
Equipped with the revolutionary new Bystronic ByVision Bending control, the Bystronic Xpert and Xcite press brakes series offer unmatched efficiency and productivity capabilities. The powerful yet easy to operate ByVision Bending control uses a full 22 inch HD touch screen to display realistic 3D part animations and software driven menu selections. Bending profiles can be either imported or drawn directly on the touch screen and then automatically converted to a bending program with proper bending sequences and tool selections. A comprehensive database of material bend angles and bend allowances, enables the ByVision Bending control to make a bending professional of every user from the very first experience.
Bystronic Xcite 80E Electric CNC Press Brake (2013)
...Capacity: 88 Tons
...CNC Control: Byvision
...Bending Length: 80.7”
...Stroke Length: 5.9”
...Throat Depth: 24"
...Open Height: 21.65"
...Speeds:
.....Rapid Approach: 354.3 IPM
.....Working: 59.05 IPM
.....Return: 354.3 IPM
...Operating Pressure Max.: 50 Bar
...4-Axis Back Gauge
...Hydraulic Clamping
...(2) Front Support Arms
...Pedestal with Foot Switch
Machine Weight (approx.): 16,540 lbs.
Machine Dimensions (approx.): 140" x 112" x 103" Tall
