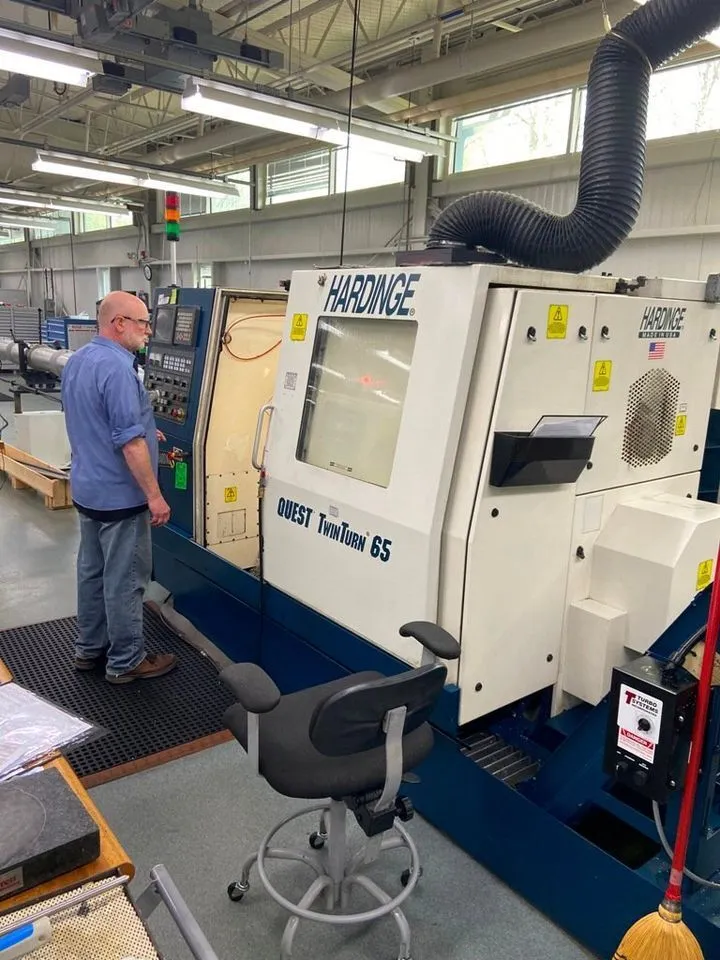

Hardinge Conquest TT65 Twin Spindle Twin Turret Live Tool CNC Lathe (2003)

Hardinge Conquest TT65 Twin Spindle Twin Turret Live Tool CNC Lathe (2003)

Spindle Configuration (2X): Ansi a2-6"
Spindle Through Hole: 3.25"
Horsepower – Main (30 Minimum): 25 Hp
Torque Rating: 179 Ft-Lb
Base Speed: 575 Rpm
Horsepower – Secondary (30 Minimum): 15 Hp
Torque Rating: 158 Ft-Lb
Base Speed: 500 Rpm
Speed Range (1 Rpm Steps): 40 to 4000 Rpm
Draw Tube Type: Hydraulic
Draw Bar Force (Maximum): 1,440 to 10,500 Lbs
B65 Collet (Through Capacity): 2.56"
S22 Master Collet (Through Capacity): 2.25"
Turning Length With Collet (Maximum): 17.72"
Hang Weight With Device and Part: 300 Lbs
Axis Specifications
Swing Diameter over Way
Covers (Maximum): 19.45"
Preloaded Ball Screw Diameter
X & Z-Axis: 1.42"
Y-Axis:
Secondary Spindle: 1.42"
Travel (Maximum)
X-Axis: 5.51"
Y-Axis: ± 1.377"
Z-Axis: 17.71"
Secondary Spindle: 20.47"
Traverse Rate (Maximum)
X-Axis: 590 Ipm
Y-Axis: 236 Ipm
Z-Axis and Secondary Spindle: 1,181 Ipm
Thrust (Maximum - 1 Minute Intermittent
Ratings Shown)
X-Axis: 2,286 Lbs
Y-Axis: 1,175 Lbs
Z-Axis and Secondary Spindle: 2,250 Lbs
Twin Vertical Turrets
Number of Stations: 10
Tool Configuration: Vdi 30Mm
Square Shank Tool Size (Maximum): 3/4"
Round Shank Tool Size (Maximum): 1-1/4"
Live Tooling Capability: All Stations
Tool Shank Diameter W/Er25 Collets: .04 - .625"
Horsepower Rating
(15 Minute Intermittent Ratings Shown): 5 Hp
Torque Rating (15 Minute Intermittent
Ratings Shown): 17.5 Ft-Lb
Speed Range (1 Rpm Steps): 80 to 8000 Rpm
Base Speed: 1,500 Rpm
Indexing Time (Station-To-Station): .6 Second
C-Axis
Speed (Maximum): 80 Rpm
Torque @ 100% Duty Cycle
Main Spindle: 74 Ft-Lb
Secondary Spindle: 22 Ft-Lb
Chip Removal System (Side Discharge)
Variable Feedrate (Maximum): 17.3 Fpm
Belt Width: 10"
General
Compressed Air Requirement: 70 to 90 Psig
Hydraulic Tank Capacity: 40 Us Gallons
Coolant Tank Capacity: 75 Us Gallons
Machine Shipping Weight: 22,300 Lbs
Coolant Tank & Hydraulic Unit Weight: 2,500 Lbs
Electrics: 230 Volts, 3 Ph, 60 Cyc
