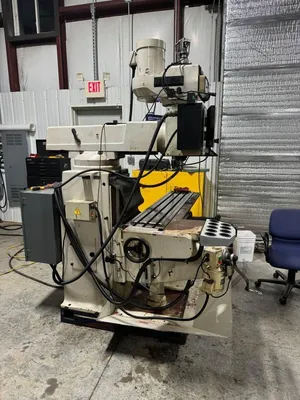

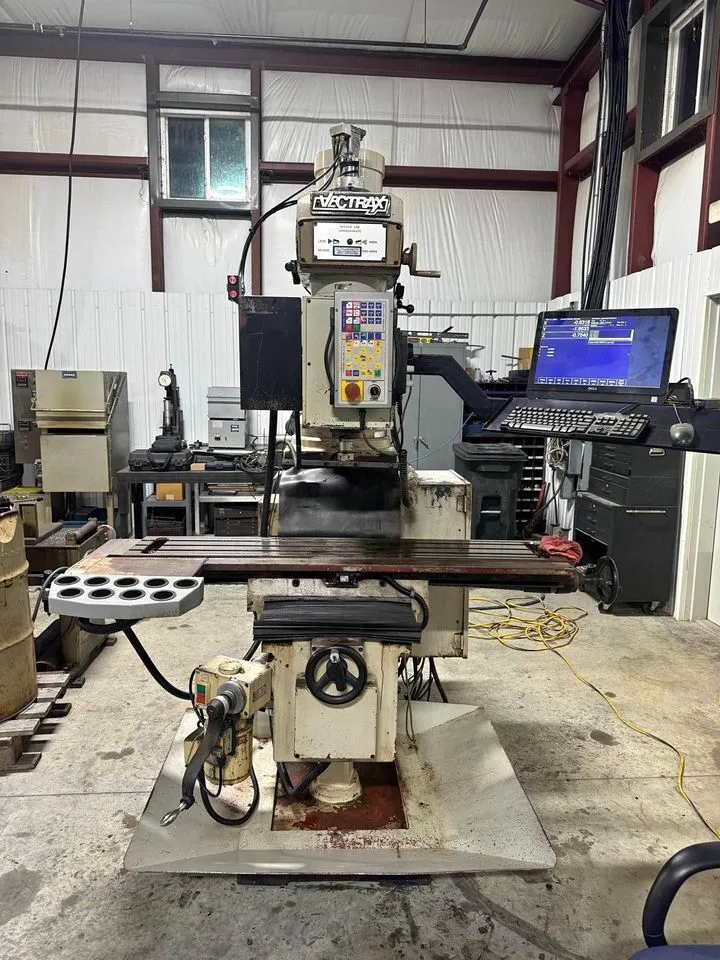

Vectrax GS20V 3 Axis CNC Milling Machine
Have one to sell?
ConditionUsed
1 available
Table Dimensions…………33″ x 16″
Table Load Capacity…………1000 Lbs.
Longitudinal Travel…………31.75″
Cross Travel…………16.25″
Knee Travel…………16″
Spindle Travel Length…………4-1/2″
Spindle Speed Range…………70 – 3600 RPM
Spindle Taper Size…………R8
Spindle Horsepower…………5 HP
Quill Diameter…………3.8″
Head Tilts:
– Left – Right…………90°
– Backward – Forward…………15°
Spindle to Table Distance…………0 – 18-3/8″
Ram Travel Length…………18″
Dimensions – Approximate…………68″ L x 64″ W x 89″ H
Centroid M39 Allinone CNC Controls
DP-4 probe system w/software installed
TT-1 tool setter.
Engraving software installed
Air turbine spindle(40,000rpm) included
Various tool holders included
