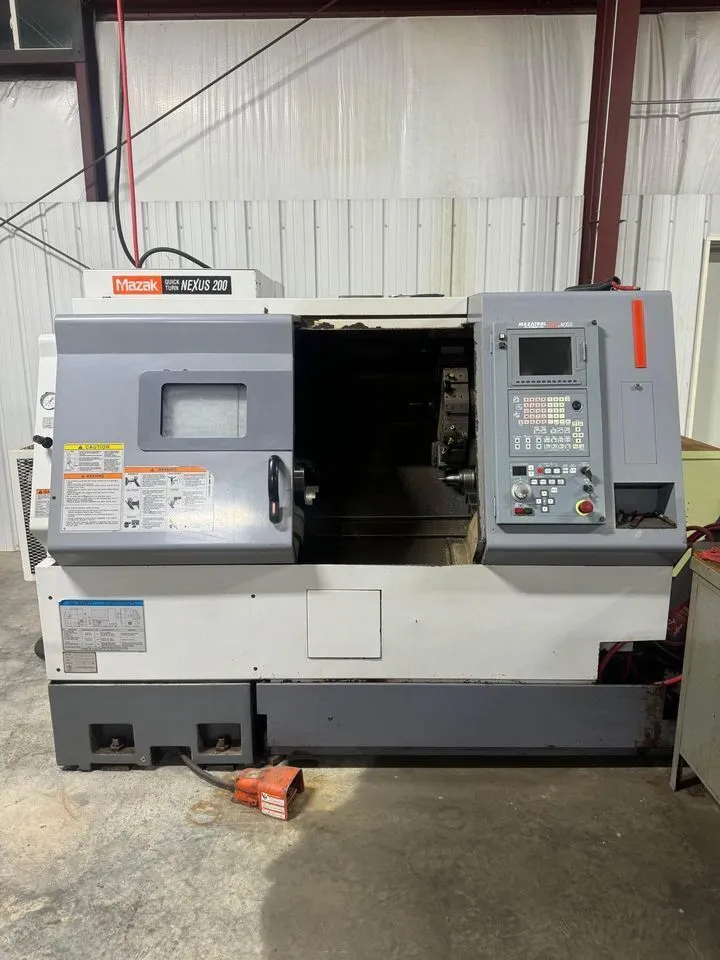

Mazak Nexus QTN200 CNC Lathe (2002)
Have one to sell?
ConditionUsed
1 available
2 Axis, Mazatrol 640T Nexus Cnc Control, Tool Presetter, Collet Nose, Coolant, Floppy Disk Drive, RS232 Serial Port, Tailstock
Mazak Nexus QTN200 CNC Lathe (2002)
Swing – Maximum…………24.02″
Swing Over Carriage…………13.78″
Machining Diameter – Maximum…………13.78″
Machining Length – Maximum…………20.16″
Bar Work Capacity…………2.5
Travels:
– X-Axis…………7.5″
– Z-Axis…………21.125″
Spindle Speed…………5000 RPM
Spindle Nose…………A2-6
Spindle Bore…………2.99″
Turret…………12 Stations
Rapid Traverse Rate (X / Z)…………1181 / 1299 IPM
Spindle Motor…………35 HP
Electrics…………
Machine Weight – Approximate…………10,582 Lbs
Mazatrol 640T Nexus Cnc Control
Floppy Disk Drive
RS232 Serial Port
Tailstock
