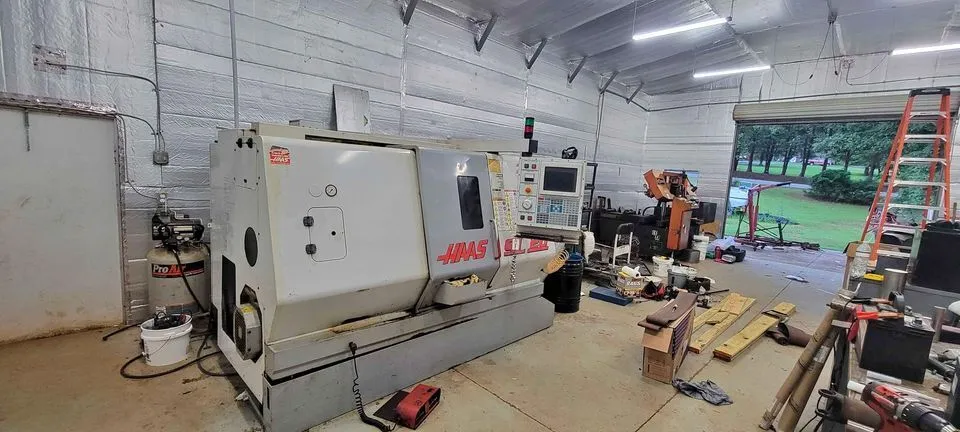

Haas SL-20 CNC Lathe (1998)

Haas SL-20 2 Axis CNC Lathe (1998)
Capacity:
Max Turning Diameter : 10.3″
Max Swing Over Bed : 23.0″
Max Turning Length: 20.0″
Max Bar Capacity : 2.0″
Distance Between Centers : 20″

Travels:
X Axis Travel : 7.10″
Z1 Axis Travel : 21.0″

Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 1 Second

Tailstock:
Tailstock Body Travel: 20″
Taper: MT-4

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 124″ x 74″ x 70″ High
Machine Weight: 9,000 lbs Approx.
