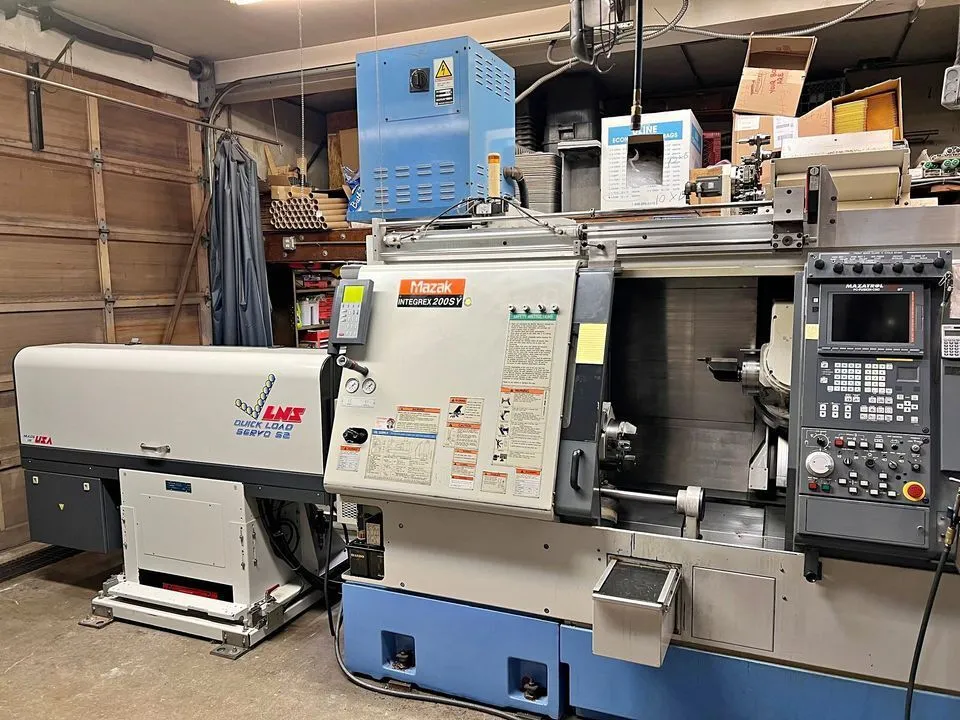

Mazak Integrex 200SY Multi Tasking CNC Lathe (2001)
Have one to sell?
ConditionUsed
1 available
Mazak Integrex 200SY Multi Tasking CNC Lathe (2001)
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 Main / Sub RPM
Spindle Motor: 30 HP
X Axis Travel: 20.87"
Z Axis Travel: 42"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 40 ATC Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 21.25"
Max Turning Length: 42"
Max Swing: 21.25"
Dimensions: 138" x 83" x 96"
Weight: 13,000 LBS
Fusion 640MT
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Background Path Check
EIA / ISO
Y Axis Control
Synchro Mill Tapping
Scale Feed Back
Direct DWG Size
User Macro
600 Macro Variables
Work Coordinates Select
Polar Coordinates Imput
Helical Interpolation
Coordinate Rotation
B Axis Control
Helical Tap
Pitch Error
46 tool holders - ER40, ER32, ER25, Turning, Boring Tool Holders
