| Table-W | 96" | 2,438.4 mm |
| Table-L | 48" | 1,219.2 mm |
| RPM | 24,000 RPM | 24,000 RPM |
| Taper | 30 | 30 |
| # Axis | 3 | 3 |
| X | 100" | 2,540 mm |
| Y | 52" | 1,320.8 mm |
| Z | 8" | 203.2 mm |
| Dimensions | 159"x118"x69" | 159"x118"x69" |
| Weight | 2800 | 2800 |

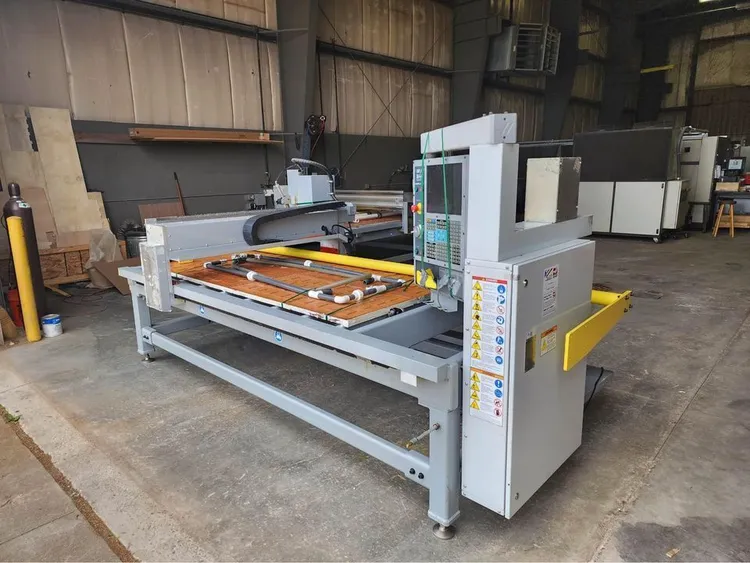

HAAS SR-100 CNC Gantry Type Router
# Axis 3
Table Size 48" x 96" (4' x 8')
X-Axis Travel 100"
Y-Axis Travel 52"
Z-Axis Travel 8"
Rapid Traverse Rate (X/Y/Z) 2,000 / 2,000 / 590 ipm
Distance Between Columns 62.5"
Max Material Thickness 1"
Spindle Nose to Table 3" - 11"
Spindle Taper ISO 30
Spindle Speed 24,000 rpm
Rapid traverse rates (x, y, z): 2000 IPM
Cutting feedrates: 590 IPM /1,000 IPM Machine
Spindle Motor (HP) 5 HP
Dimensions 159" x 118" x 69"
Weight 2800 pounds
Dimensions 159"x118"x69" Machine weight: 2,800 lbs
5HP HSD 24,000 RPM, Remote Jog Handwheel, Probing ,10 Station Tool Changer
