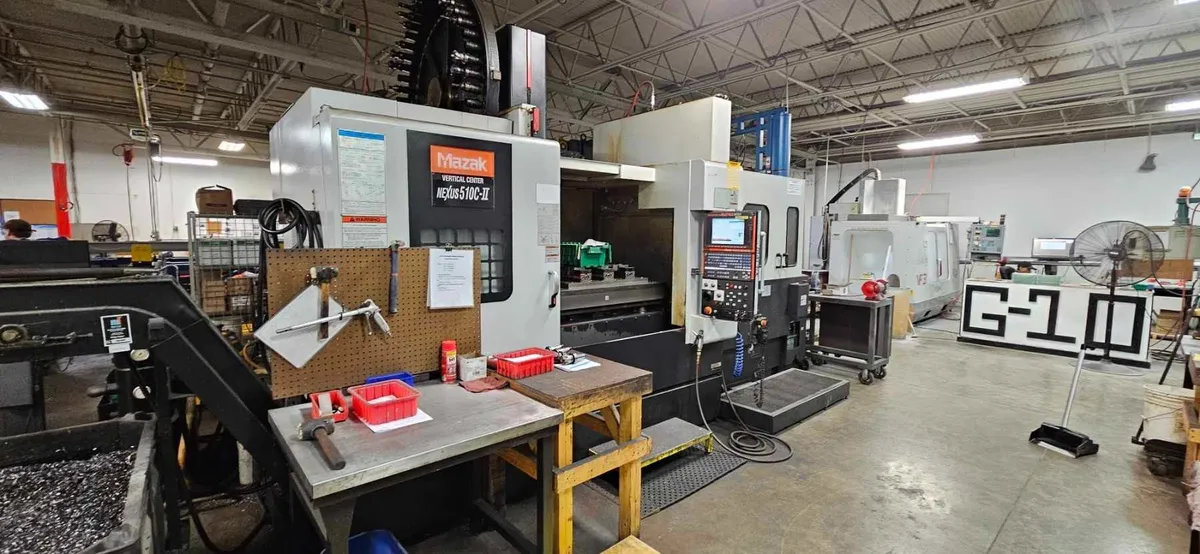

Mazak Nexus VCN510C-II Vertical Machining Center (2010)
Have one to sell?
ConditionUsed
1 available
48 ATC, Mazatrol Matrix Control, High Pressure Coolant Through Spindle, Flood Coolant, 40 Taper, 2 Pallet, Chip Conveyor, Dual Probe Kit OMP60/0TSSA w/ EIA Inspect Plus, Auto Pecking Cycle With Load Detection Synchronized Tapping, Mazacc-2D Software Shape Comp, ( 2 Identical Machines Available )
Mazak Nexus VCN510C-II Vertical Machining Center (2010)
Table Size 51.18" x 21.65"
Maximum Table Load 2,646 lbs.
X-Axis Travel 41.3"
Y-Axis Travel 20"
Z-Axis Travel 20"
Spindle Taper CAT #40
Spindle Speeds 12,000 RPM
Spindle Motor 25 HP
Distance Spindle Nose to Table Top 5.9" - 25.98"
Number of Tool Positions 48 Station Tool Changer - Side Mounted
Maximum Tool Diameter / Length / Weight 4.92" / 13.8" / 17 lbs.
Tool Change Time Tool to Tool 1.3 seconds
Rapid Traverse Rates 1,417 IPM
Machine Dimensions 240"x144"x122"
Machine Weight 20,700 lbs.
Pallet changer
Mazatrol Matrix Control
Automatic Tool Length Measurement w/ Renishaw TS27R Probe
High Pressure Coolant Through Spindle, Flood Coolant
Chip Conveyor
48 Station Side Mount Automatic Tool Changer
Rigid Tapping
Windows XP Operating System / (2) Ports USB Interface
LAN Port Interface / 3.5" Floppy Disk Drive Interface /RS-232 Port Interface
Dual Probe Kit OMP60/0TSSA w/ EIA Inspect Plus, Auto Pecking Cycle With Load Detection Synchronized Tapping, Mazacc-2D Software Shape Comp, ( 2 Identical Machines Available )
