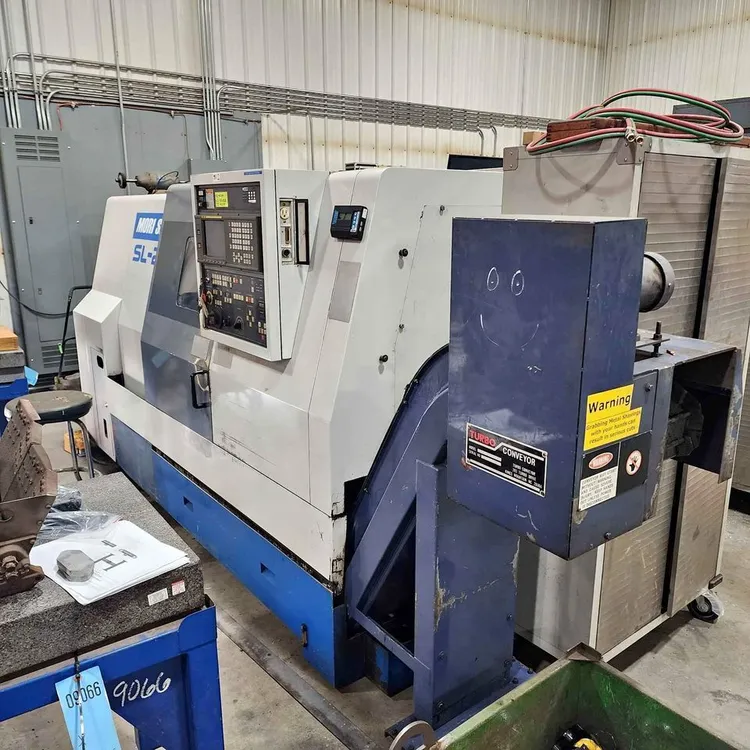

Mori Seiki SL-25 2 axis CNC Lathe (1993)

MANUFACTURED NEW 1993
SWING OVER BED 20.5"
SWING OVER CROSS SLIDE 13.8"
MAX. TURNING DIA. (RECOMMENDED) 10.2"
DISTANCE BETWEEN CENTERS 44.3"
MAXIMUM TURNING LENGTH 40.6"
X AXIS TRAVEL 6.3"
Z AXIS TRAVEL 43"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 590 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 3.15"
MAXIMUM BAR CAPACITY 2.68"
SPINDLE SPEEDS 35 - 3,500 RPM
SPINDLE MOTOR 20 HP
TURRET CAPACITY 10 STATION TURRET
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL DIAMETER 4"
TAILSTOCK QUILL STROKE 4"
TAILSTOCK BODY TRAVEL 39"
DIMENSIONS, APPROX. 169"L x 63"W x 74"H
WEIGHT, APPROX. 12,100 LBS
