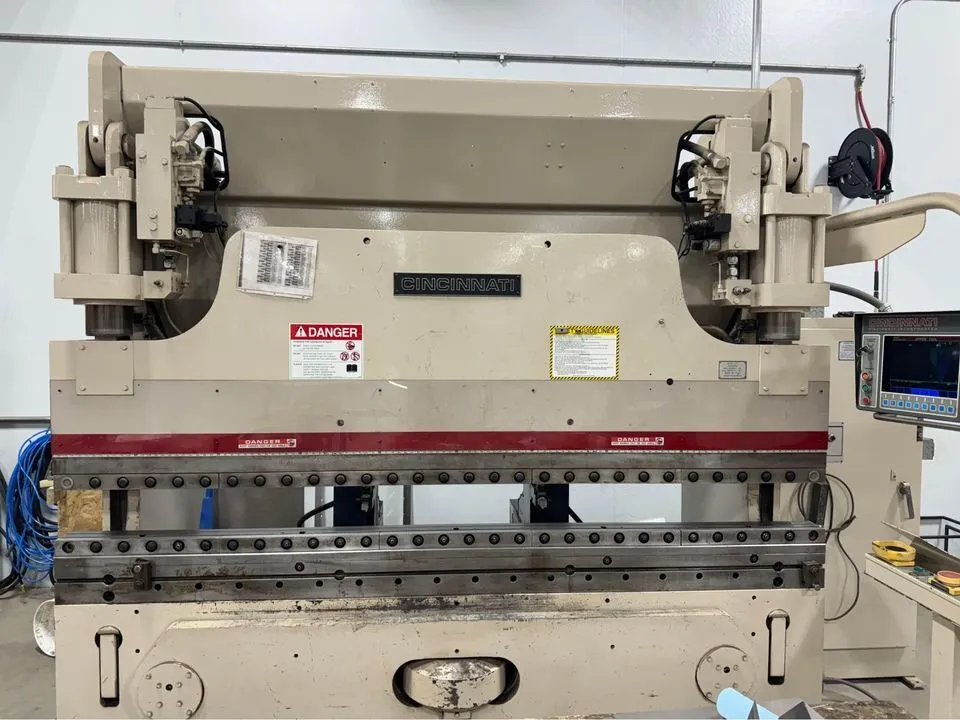

Cincinnati AutoForm 135 Ton x 8' Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available
6 Axis Back Gauge With Auto Crown
CATALOG SPECIFICATIONS:
Tonnage Capacity, Maximum 135 TON
Tonnage Capacity, Full Forming Speed 105 TON
Overall Length of Bed and Ram 10'
Distance Between Housings 102.5"
Bending Capacity 10' x 3/16"
Bending Capacity 7'6" x 1/4"
Bending Capacity 4'8 x 1/2"
Stroke Length 14"
Open Height 15"
Closed Height 7"
Throat Depth 12"
Ram Speed Full Tonnage, Maximum 64 IPM
Ram Speed, High Approach 290 IPM
Ram Speed, Variable Forming 1 to 80 IPM
Ram Speed, Variable Return 1 to 270 IPM
Hydraulic Motor, Horsepower 25 HP
Weight, Approximately 19500 LBS
- Cincinnati-Inc Autoform CNC Controls
- 6-Axis Back Gauge
