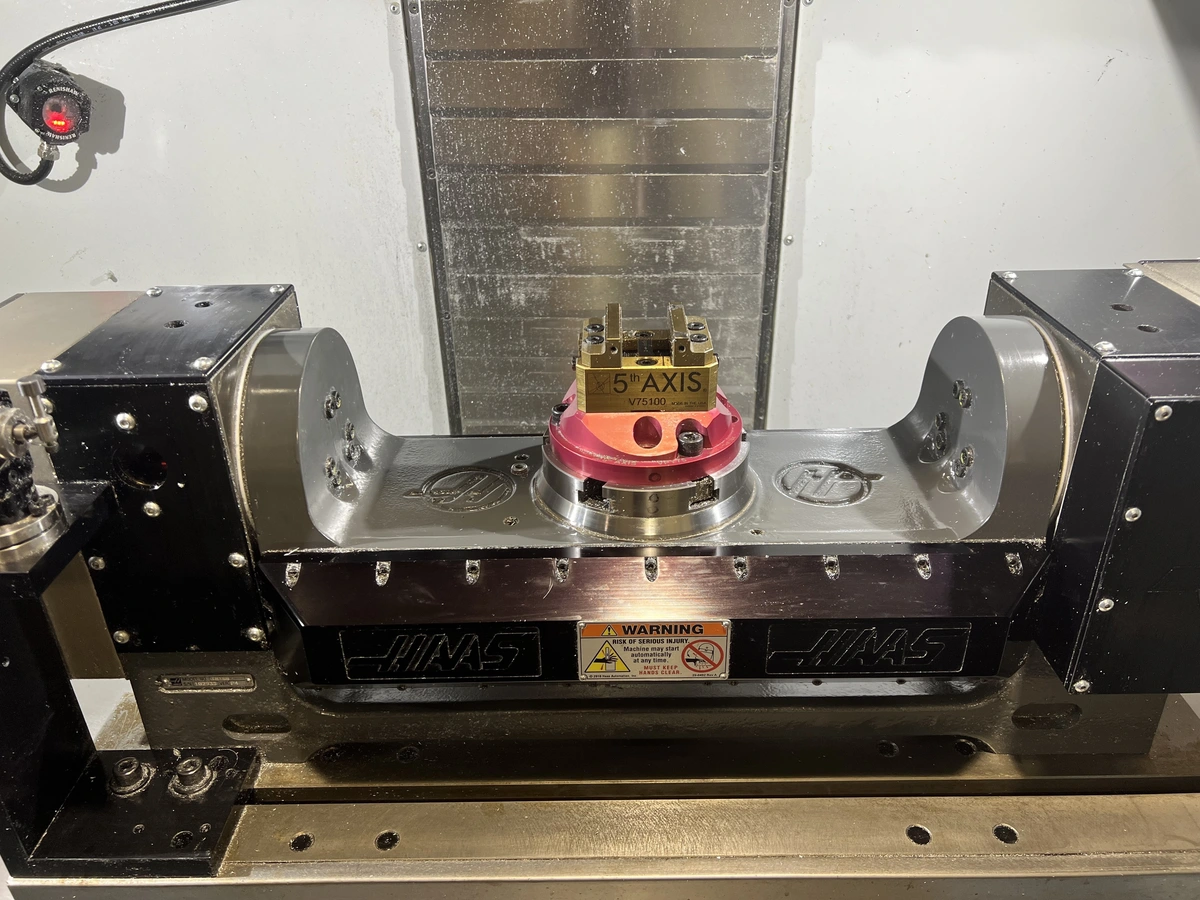

Haas Model TR 160 5-Axis Trunnion Rotary Table

Haas Model TR 160 5-Axis Trunnion Rotary Table

Platter Diameter: 6.30″ (160 mm)
Max Weight on Platter: 110 lbs (49.9 kg)
Max Part Swing: 17.5″ (445 mm)
T-Slots: 6 @ 60 degrees

A-Axis (Tilt) Speed: 80°/sec
A-Axis Rotation: +/- 120°
A-Axis Tilt Resolution: 0.001°
Brake Torque (A-Axis @ 100 psi): 200 ft-lbf

B-Axis (Rotary) Speed: 80°/sec
Brake Torque (B-Axis @ 100 psi): 100 ft-lbf
B-Axis Rotation/Step: 999.999°
B-Axis Rotary Resolution: 0.001°

Max Torque (A/B Axis): 100 ft-lbf
Gear Ratio (A/B Axis): 63:1
Timing (A/B Axis): 2:1

Approx Dimensions (Crated): 49″ x 21″ x 25″
Approx Weight (Crated): 520 lbs
