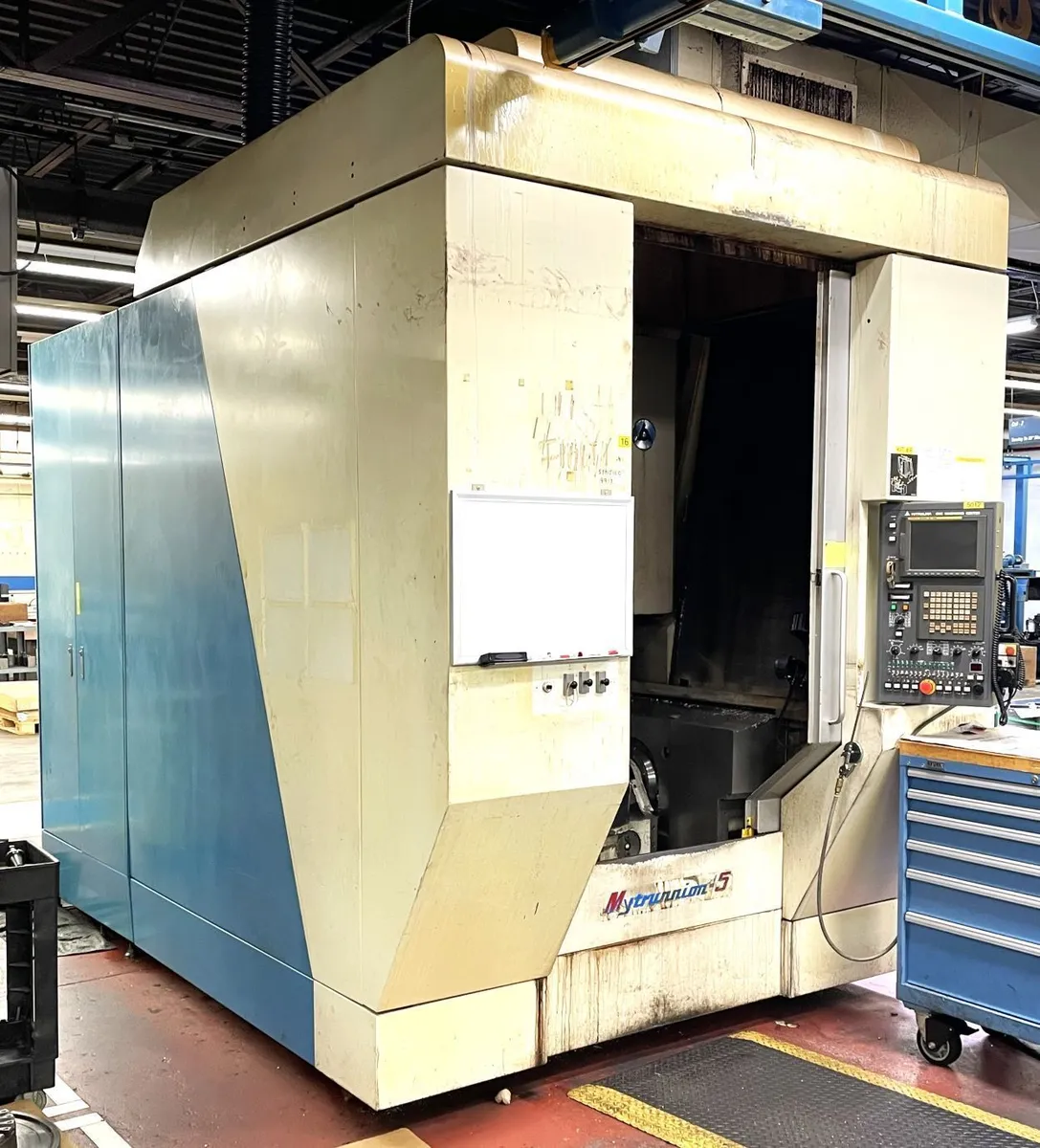

Kitamura Mytrunnion 5 Axis Vertical Machining Center (2006)
Have one to sell?
ConditionUsed
1 available
5 Axis
Kitamura Mytrunnion 5 Axis Vertical Machining Center (2006)
Table Size 24.8" x 19.7",
Max. work size 24.8" x 19.6
Distance, floor to table surface 30.9",
Table load capaity 880 Lbs,
32" X-Axis,
29.3" Y-Axis,
19.6" Z-axis
Table tilting (C-Axis) 360 Deg.,
Table Surf. to Spindle nose 3.9" - 23.6",
No. 40 Spindle taper,
20,000 rpm spindle speed,
X & Y rapid feeds
1,968 Ipm,
Z axis rapid feed
590.6 Ipm, X,Y & Z Cutting feed 24,000 mm/min,
20 Hp spindle motor,
24 Atc, A-axis table tilt 150 Deg.
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
100 Tools High Speed Tool Changer ( Optional )
Glass Scales on the Axis
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Rear Discharge Chip Conveyor
Work light
