Fanuc RoboDrill A-D21SiB5 4 Axis Vertical Machining Center (2017)
Sold

Fanuc RoboDrill A-D21SiB5 4 Axis Vertical Machining Center (2017)

Machining Centers, Vertical
Manufacturer:
FANUC
Model:
ROBODRILL AD21SIB5
Year:
2017
Stock #:
92853

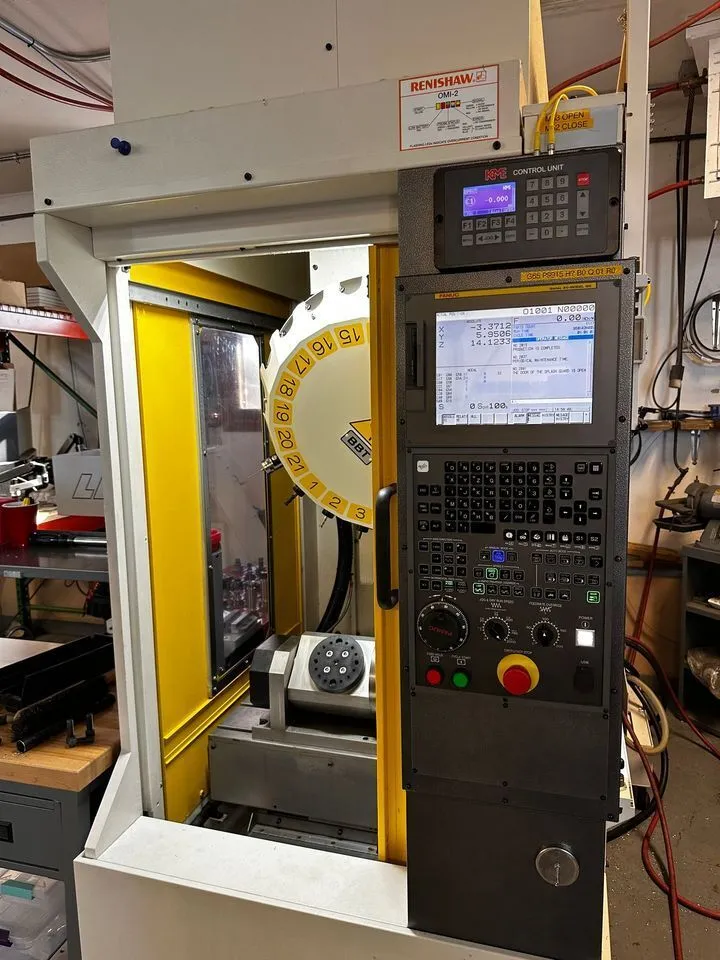

Fanuc RoboDrill A-D21SiB5 4 Axis Vertical Machining Center (2017), Less Than 1000 Hours Fanuc RoboDrill D21SiB5-10K is a high-performance vertical machining center designed for drilling and milling operations. With a spindle horsepower of 18.7hp for 1 MIN and 7.5hp continuous. The model year is 2017, 220V.The Fanuc brand is known for its reliability and efficiency. With the KME five Axis indexer and the 65,000 RPM air spindle, it turns this machine into a high performance 3+2 capable of almost 5 access machining.
size11.81 x 11.8111.81 x 11.81
X Travel11.81"299.97 mm
Y Travel11.81"299.97 mm
Z Travel12.99"329.95 mm
RPM10,000 RPM10,000 RPM
# ATC2121
Taper3030
Table-W12"304.8 mm
Table-L24"609.6 mm
# Axis44
Weight4409.5 lbs4409.5 lbs

Fanuc RoboDrill A-D21SiB5 4 Axis Vertical Machining Center (2017)

Max Tool Length - 7.48"
Travel X/Y/Z- 11.81" x 11.81" (+3.94") x 12.99"
Max Tool Diameter - HS 3.15"/3.94"
Table Size - 24.80" x 12.99"
Max Table Load - 440.92 lbs
Max Tool Weight - 6.61 lbs
Distance from Spindle Nose to Table - 9.8"- 22.8"
Rapid Traverse All Axis - 54
Acceleration - X/Y/Z [G] (100kg table load, 2kg-tool) 1.6/1.2/1.6
Spindle load - 10,000 rpm (continuous operation) - Nm | kW 13.6Nm/4kW
Number of Tools - 21
Tool Change Time C-to-C - 1.6 seconds
Programmable cutting feed in/min - 1181.1"
Machine Weight - 4409.25lbs
Spindle Holder - BT30

• Only 960 Hours on machine
• Fanuc 31iB5 Control 10K Main Spindle
• KME 3+2 IINDEXER TR 100S - Additional Cost
• Multiple tool holders (30) of varying types.
• Toolcart
• Blum Pico Tool Setter

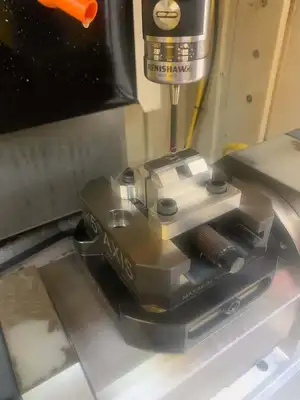

• Renishaw Probe OMP40
• Air Turbine Air Spindle 65,000 RPM - Tool Changable 625-30 65K - Additional Cost
• Cyclone Air Filter & Dryer System
• Chip Conveyer LNS Turbo HB
• Wash Down System
• Flood Coolant
• Through Spindle High Pressure Coolant
• Robot Auto Door on right side (Automation Cell Ready)

This equipment has been sold. Similar equipment available now is shown below.
