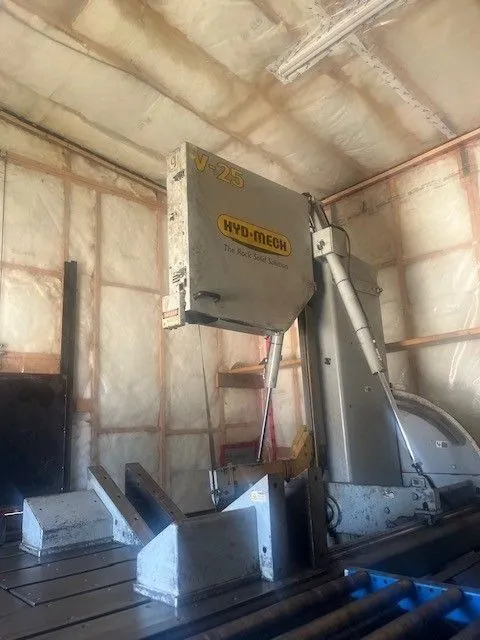

Hyd-Mech V-25 Vertical Band Saw
Have one to sell?
ConditionUsed
1 available
The V-25 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.
A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement.
Its standard 6° degree canted head allows for more efficient cutting and improved blade life.
Featuring a 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25 is a reliable choice for all your vertical metal cutting applications.
Hyd-Mech V-25 Vertical Band Saw
Capacity Rectangular (h x w) Square Round
90° 30” x 25” 25” 25”
45° 21” x 25” 21” 21”
60° Right 14 1/2” x 25” 14 1/2” 14 1/2”
60° Left 13 1/2” x 25” 13 1/2” 13 1/2”
Blade Size 1 1/2” x 21’ 0.5” Hyd. Tank Capacity 7 Gallons
Blade Drive 10 HP VFD Machine Weight 10,000 lbs.
Motor Voltage 208, 240, 480, 575 v Table Height 44”
Blade Speed 75-350 SFM Dimensions (w x l x h) 96” x 160” x 123”
Coolant Tank Capacity 38 Gallons Mitering capability 60° left to 60° right
Standard Machine Features
· 6° canted head allows for efficient cutting and improved blade life
· Control provides hydraulic powered mitering from 60° left to 60° right
· Digital angle display
· Two full stroking hydraulic vises
· Powered movable guide arm
· Laser light
· 10 HP VFD. True direct blade drive – no belts/pulleys
· Cast iron band wheels
· Replaceable blade brush
· Robust steel base
· Easy access electrical panel and hydraulics
· Blade breakage switch
· Variable vise pressure
· Hydraulic band tensioning with digital readout
· Replaceable carbide guide inserts
· 3 HP hydraulic pump provides system pressure
· Safety door interlocks
· Flood coolant with wash down hose
· Work light
