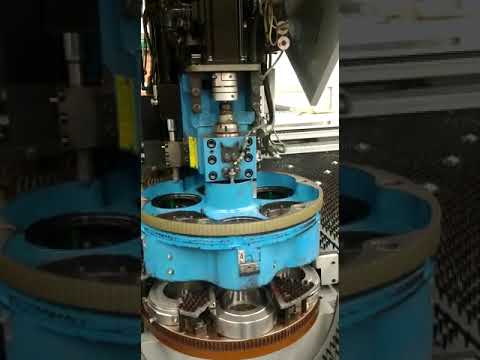

Euromac MTX 1250 CNC Turret Punch (2009)

Euromac MTX 1250 CNC Turret Punch (2009)

Pressing force: 300 kN (30 t)
number of D stations: 6 (including 3 self-indexing stations)
feed in the X/Y axis: 2250/1250 mm
automatic repositioning on the X axis: up to 10000 mm
Positioning accuracy: +/- 0.05mm
piercing speed (nibbling mode): 780 1/min
punching speed (marking mode): 2000 1/min
drilling speed (20mm pitch): 300 1/min
sheet thickness: 0.5 – 10 mm
maximum sheet weight: 150 kg
planing table
additional tool: Multitool MT 6-24 mm (2 pcs.)
USB port
installed power: 7.5 kW
power supply: 220 V/ 50 Hz
total weight: 8400kg
Machine dimensions (L x W): 3970 x 3430 mm
