Matec 10 Axis Vertical Style Dual Bridge Gantry Type Ultrasonic 3D Complex Contour Inspection System (2018)
Have one to sell?
ConditionUsed
1 available
Matec Instrument Companies, Inc. is an industry leader in providing ultrasonic nondestructive testing solutions. Our systems incorporate a wide range of features tailored to meet the needs our customers.
Matec provides a full range of in-house services including mechanical and electronic design, machining and fabrication, instrumentation and control, and data acquisition and analysis software. This allows us to provide a seamless, fully integrated solution, and provides a single point of contact for our customers.
Matec provides installation, startup and training, and customer support services to ensure proper system alignment and calibration, and optimum performance and value to our customers.

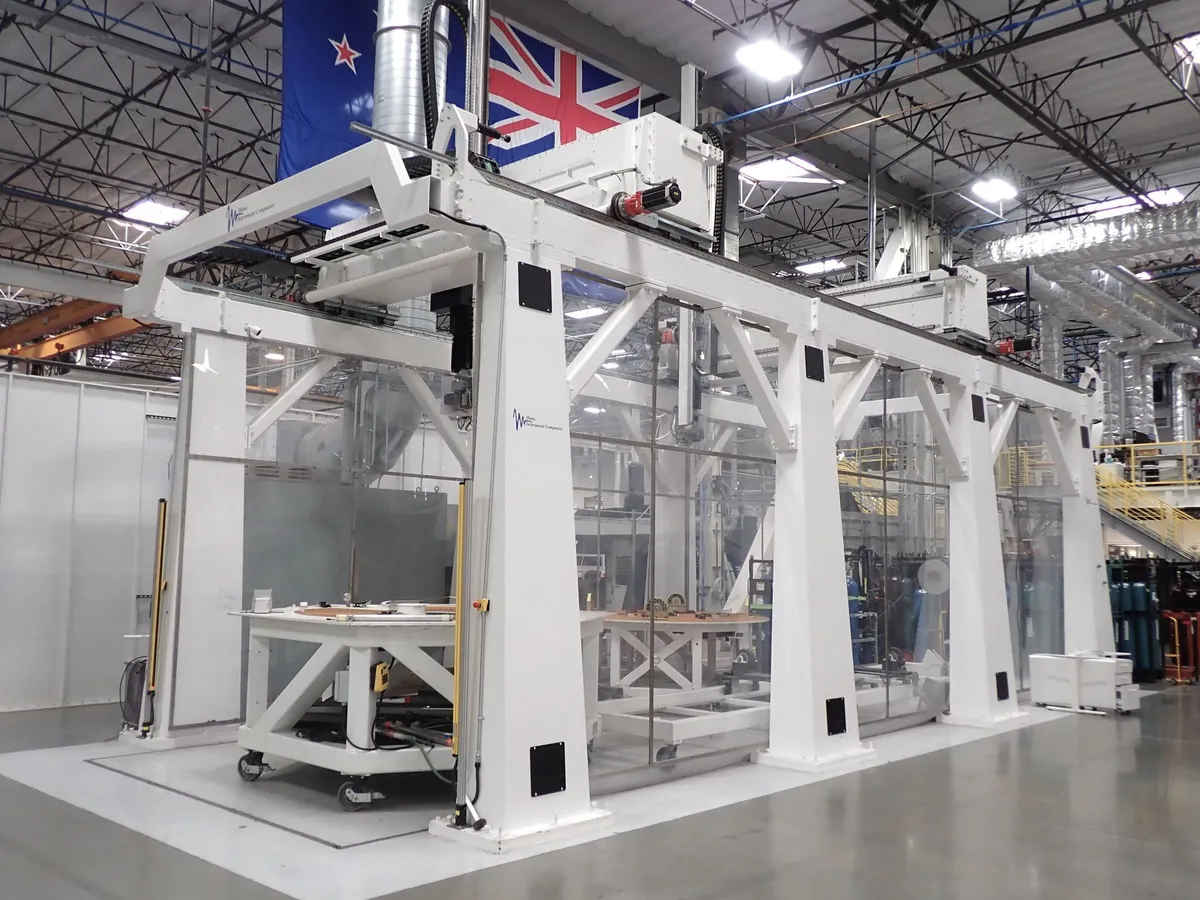

Matec 10 Axis Vertical Style Dual Bridge Gantry Type Ultrasonic 3D Complex Contour Inspection System (2018)
Actual scan area is 28' in horizontal (X-axis) and 10' in lateral (Y-axis)
11' scan capacity in vertical (Z-axis)
Scan speeds in excess of 4o inches per second
Volumetric /static positioning accuracy +/- 0.010" or 0.25 mm
Axis Minimum Speed: X-Axis (1 & 2): To 40 in/sec
Y-Axis (1 & 2): To 20 in/sec
Z-Axis (1 & 2): T0 10 in/sec
A-Axis (1 & 2): To 10 in/sec
B-Axis (1 & 2): To 45 deg/sec
Footprint needed for system: 41' x 17'
500 gallon water reservoir
Dual 5-Axis Gantries
TTU and PE UT methods of data Collection
Systems Dynamic Range is as high as 130 dB utilizing multi -channel linear or logarithmic amplifiers
System has (3) point correction to accommodate for parts placement
Windows PC based operating system
The system has a sophisticated method of compensation for positional error on every axis
System has part programming via CATIA file download, automatic or manual teach and learn
20' length capacity roller bed
8' diameter turntable with 500 Lb capacity
Square wave pulser receiver
Matec "aragon" A, B and C-scan software
3D profile manipulator
