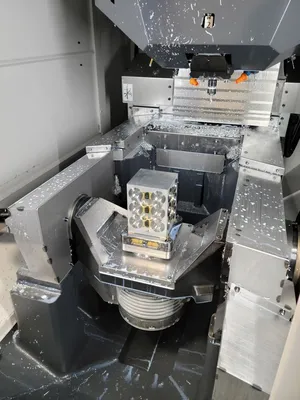

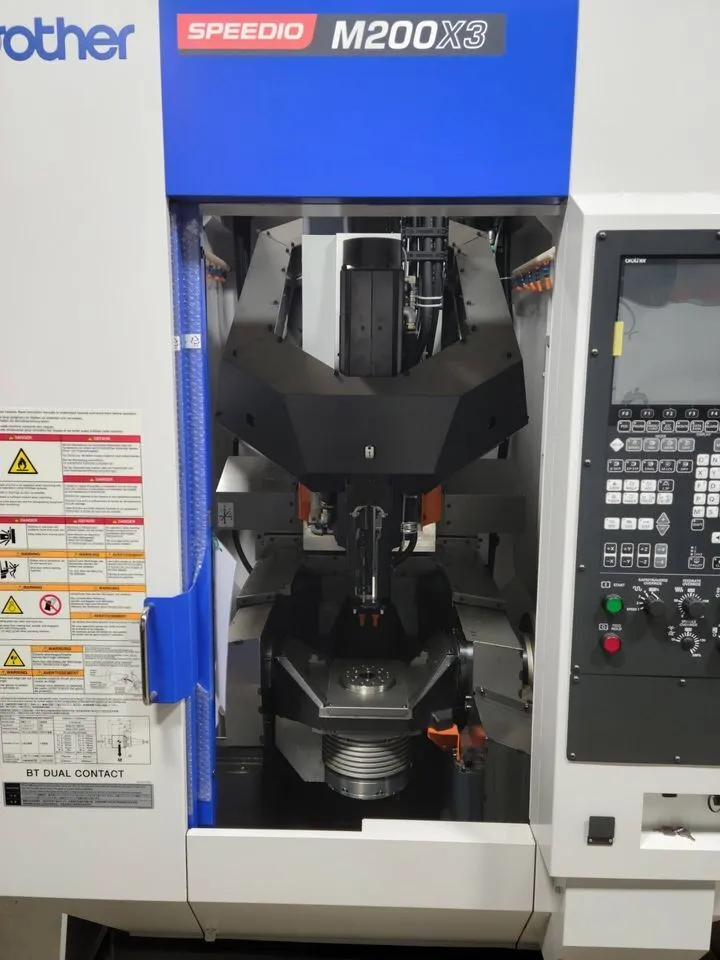

Brother Speedio M200X3 5 Axis Machining Center (2022)

Brother Speedio M200X3 5 Axis Machining Center (2022)
X axis [mm (inch)] 200 (7.9)
Y axis [mm (inch)] 440 (17.3)
Z axis [mm (inch)] 305 (12.0)
A axis [deg.] 120 - -30 120 - -30
C axis [deg.] 360 360
Table Work area size [mm(inch)] Φ140 (Φ5.5)
Shape of table top In compliance with table nose No.5 of ISO702-4 (JISB6109-2)
Max.loading capacity (uniform load) [kg (lbs)] Table side 75 (165.3) / Tail side 11 (24.3) Table side 40 (88.2) / Tail side 11 (24.3)
Maximum table load inertia [kg･m2(lb･inch2)] Table side 0.58 (1982) / Tail side 0.04 (137) Table side 0.29 (991) / Tail side 0.04 (137)
Spindle Spindle speed [min-1] 10,000min-1 specifications : 10 - 10,000
Speed during tapping [min-1] MAX. 6,000
Tapered hole 7/24 tapered No.30
BT dual contact spindle (BIG-PLUS) Optional
Coolant Through Spindle (CTS) Optional
Turning spindle Max. spindle speed [min-1] 2,000
Feed rate Rapid traverse rate (XYZ-area)
[m/min(inch/min)] 50 X 50 X 50 (1,969 X 1,969 X 1,969)
Cutting feed rate
[mm/min(inch/min)] X,Y,Z axis : 1 - 30,000 (0.04 - 1,181)*7
Indexing feedrate (A and C) [min-1] A axis: 50, C axis: 200 A axis: 60, C axis: 200
ATC unit Tool shank type MAS-BT30
Pull stad type*4 MAS.P30T-2
Tool storage capacity [pcs.] 22
Max. tool length [mm(inch)] 200 (7.9)
Max. tool diameter [mm(inch)] 80 (3.1)
Max. tool weight [kg (lbs)]*1 3 (6.6)
Tool selection method Random shortcut method
Tool change time*5 Tool To Tool [sec.] 0.8 0.8
Chip To Chip [sec.] 1.6 1.5
Electric motor Main spindle motor (10 min/continuous) [kW]*2 10,000min-1 specifications : 10.1/7.0
16,000min-1 specifications(optional) : 7.4/5.1
Axis feed motor [kW] X,Y axis 1.0, Z axis 1.8, A axis 0.8
Turning spindle motor [kW] 3.6
Power source Power supply AC200V±10%、50/60Hz±1Hz
Power capacity(continuous) [kVA] 10,000min-1 specifications : 9.5
16,000min-1 specifications (Optional): 9.5
Air supply Regular air pressure [MPa] 0.4 - 0.6 (recommended value : 0.5MPa)*6
Required flow [L/min] 165
Machine dimensions Height [mm (inch)] 2,603 (102.5)
Required floor space [mm (inch)] 1,280 X 3,862 (50.4 X 152.0)
Weight [kg (lbs)] 2,880 (6,349) [3,050 (6,724) with BV7-870]
Accuracy*3 Accuracy of bidirectional axis positioning (ISO230-2:2006)[mm (inch)] 0.006 - 0.020 (0.00024 - 0.00079) [X,Y,Z] 28 sec or less [A,C]
Repeatability of bidirectional axis positioning (ISO230-2:2006)[mm (inch)] Less than 0.004 (0.00016) [X,Y,Z] 16 sec or less [A,C]
Standard accessories Instruction Manual (1 set), anchor bolts (4 pcs.), leveling bolts (4 pcs.)
