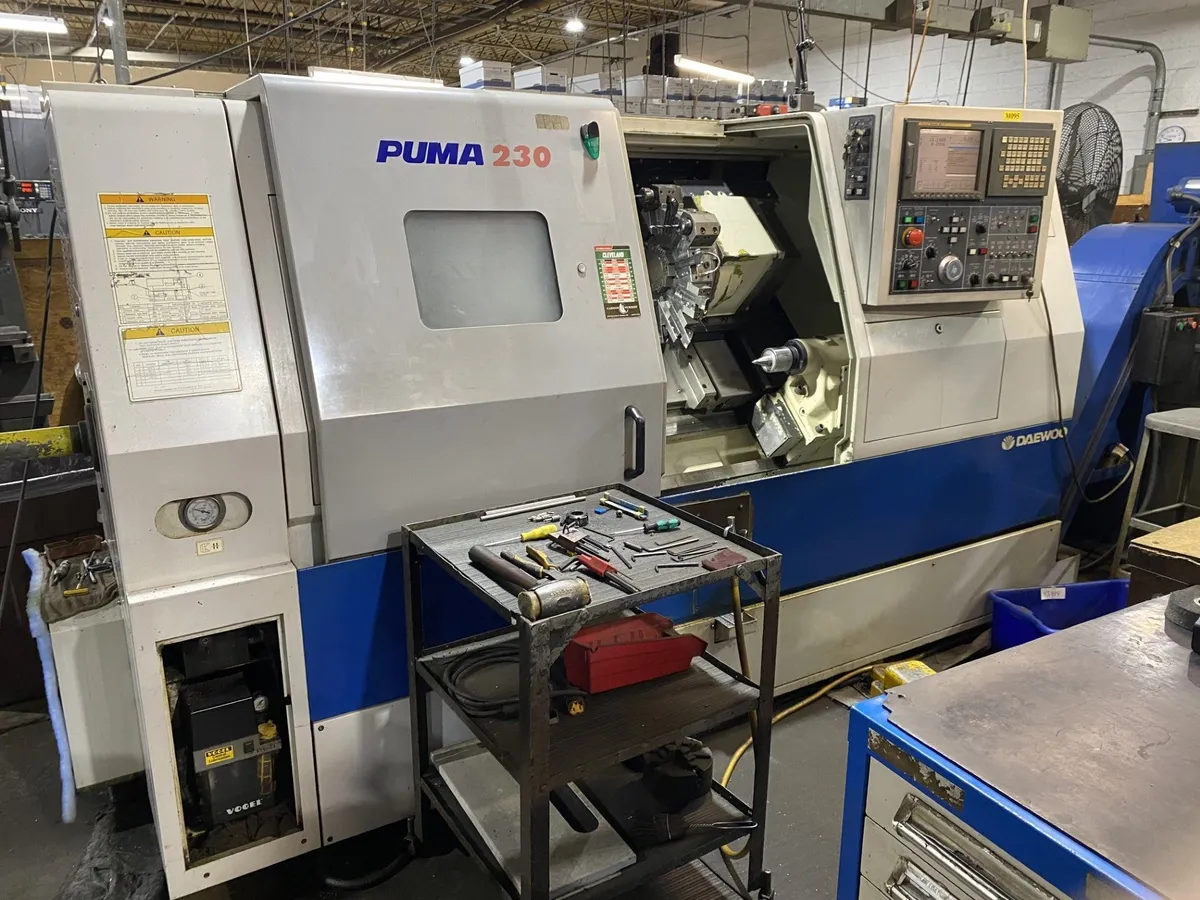

Daewoo Puma 230C 2 Axis CNC Slant Bed Lathe (2002)

Daewoo Model Puma 230C 2 Axis CNC Slant Bed Lathe (2002)

Max Turning Diameter: 13.78″
Max Turning Length: 21.57″
Max Bar Capacity: 3.0″
Swing Over Bed: 20.1″
X Axis Travel: 9.53″
Z Axis Travel: 22.83″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 1000 IPM
Spindle Nose: A2-8
Spindle Bore: 3.54″
Spindle Speed: 35 – 3500 RPM
Spindle Motor: 15/18.5 kw
Turret Capacity: 12 Station Automatic Turret
Turret Index Time: 0.1
Second Tailstock Taper: MT-4 Tailstock
Quill Dia.: 2.95″
Tailstock Quill Travel: 3.15″
Overall Dimensions: 117” x 64″ x 69″ High
Weight: 8800 lbs.
