| Tonnage | 120 T | 108.862 t |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 1" | 25.4 mm |

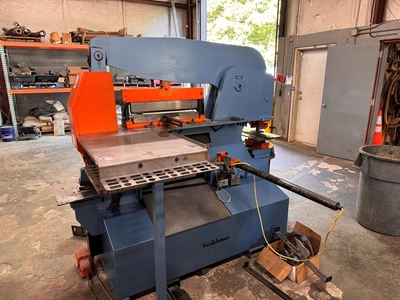

Scotchman DO 120/200-24M 120 Ton Hydraulic Ironworker (2018)
Punching Capacity 120 ton
1-1/2" in 1" 108 mt
38 in 25 mm
Special Tooling 4" Max. Dia. 102 mm Max. Dia.
Throat Depth 12" 305 mm
Flat Bar Shear
(Sabre Blade - Standard) 24" Length
1" x 12"
3/4" x 20"
1/2" x 24" 610 mm
25 x 305 mm
19 x 508 mm
12 x 610 mm
Angle Shear 90 degree 6" x 6" x 1/2" 152 x 152 x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear
3" x 3" x 3/8"
4" x 4" x 1/2"
76 x 76 x 10 mm
102 x 102 x 12 mm
Brake 12" 75 ton 55 mt
Brake 24" 55 ton 40 mt
Open End Brake Max. 1/4" x 5"
[Flat or Angle Iron] 6 x 127 mm
Pipe Notcher
Schedule 40 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher 3" x 5-3/4" x 1/2" 76 x 146 x 12 mm
90 degree V-Notcher 6" x 6" x 5/16"
3" x 3" x 1/2" 152 x 152 x 8 mm
76 x 76 x 12 mm
Notching in Leg of Channel 6" to 10" 152 to 254 mm
Channel Shear 2" to 6" adj. 51 to 152 mm adj.
Unistrut Shear Samples Required
Rod Shear
Round (max.)
Square (max.)
9 Cavity - 1/4" to 1-1/4"
1 Cavity - 1/4" to 1"
6 to 32 mm
6 to 25 mm
Square Tube Shear 1/2" to 2"
12 gauge 12 to 51 mm
0.105" / 2.7 mm
Picket Tool 1/2", 3/4", 1"
16 gauge 12, 19, & 25 mm
0.06" / 1.5 mm
Weld Coupon Bender (max.) 2" wide x 3/8" 51 x 10 mm
Offset Die Holder Max. 40 ton Max. 36 mt
Strokes per Minute in Light Material 39 spm [Punch Station] 1/4" Stroke
Strokes per Minute in Heavy Material 15 spm [Punch Station] 3/4" Stroke
Hydraulics 3,500/3,500 psi 241/241 bar
Motor Standard 10 hp
208/230/460, 380/575v; 3 ph 7.46 kW
Motor Optional 10 hp
220v, 1 ph 7.46 kW
Dimensions L: 83"
W: 38-1/2"
H: 76-1/2" L: 211 cm
W: 98 cm
H: 194.5 cm
Shipping Weight (may vary) 6,204 lbs. 2,814 kg
Pipe Notcher
Tool Table with Punch and Die Storage
24”x5’ Convery with Angle Iron Support
Channel Shear
24” Break
Laser Light Bar
48” Back Gauge
Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets. 25+ punches
Dual Operator, 5 Stations
Dual operator allows for two operators to work at the same time at full capacity
120 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
LED work lights now standard equipment!
Jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Tandem Hydraulic Pump
Two valves
Angle shear
Rectangle notcher with table, scale and guides
Flat bar shear with sabre blade
Shear table with miter fence
Tool table work area
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
