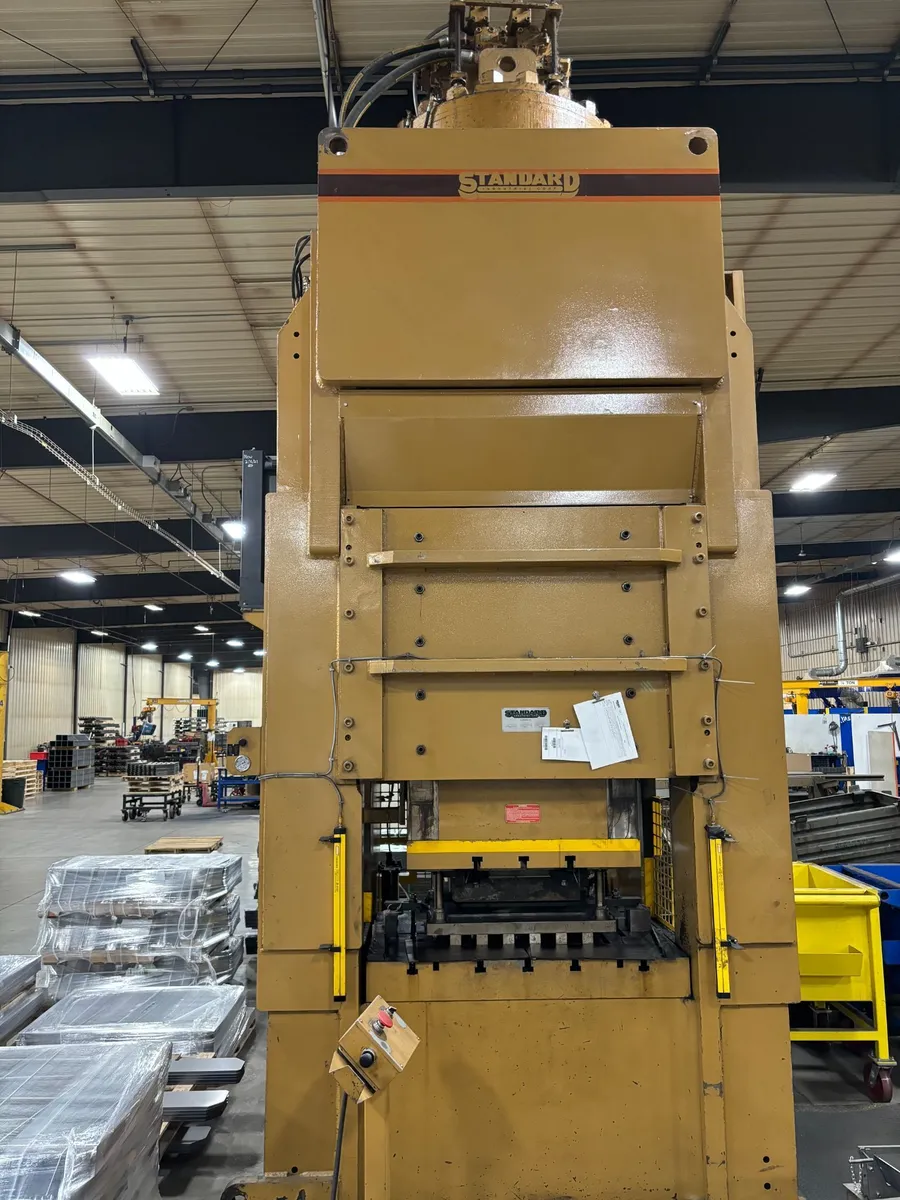

Standard Industrial DCSS700 700 Ton Straight Side Press (2008)
Have one to sell?
ConditionUsed
1 available
Standard Industrial DCSS700 700 Ton Straight Side Press (2003)
Forming Tonnage: 700 Ton
Punching Tonnage: 350 Ton
Ram Size: 40" Wide, 38" front/back
Bed Size: 55" Wide, 40" front/back
Bed Height: 41"
Between Housings: 55"
Ram Stroke: 12" Fully Adjustable
Open Height: 21" Max. Height
Closed Height: 9" Min. Height
Ram Speeds: Approach: 65 Ipm
Press: 15" Ipm
Return: 87 Ipm
Main Motor: 100 Hp
Overall Height: 20' High
Front to Back Dimension: 10'
Left to Right Dimension: 8'
Overall Weight, Approx: 115,000
This machine was Remanufactured in 2008
Light Curtains
Removable Bed and bed pates with t-slots
Air counterbalance cylinders
Rear Safety Barrier
Has removable bed and ram bolsters. Can add or decrease open height
Approximate cycle time with 6" total stroke is 11.9 seconds
