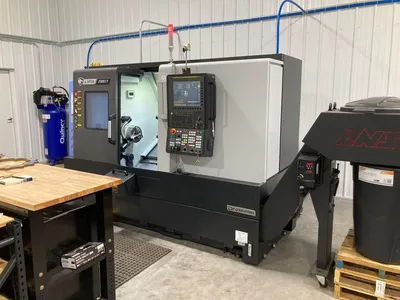

Doosan Lynx 2100LSY CNC Lathe (2023)

Doosan DN Solutions Lynx 2100LSY CNC Lathe (2023)

Travel Distance X-axis
205 mm (8.1 in)
Travel Distance Y-axis
105±52.5 mm (4.1±2.1 in)
Travel Distance Z-axis
560 mm (22 in)
Travel Distance B-axis
560 mm (22 in)
Rapid Traverse X-axis
30 m/min (1181 in/min)
Rapid Traverse Y-axis
10 m/min (394 in/min)
Rapid Traverse Z-axis
36 m/min (1417 in/min)
Power
15 kW (20 Hp)
Torque
169 Nm (124.6 ft-lbs)
Chuck Size
8 in
Speed
4500 rpm
Shank
BMT-45
Turret Stations
12 Slot
Boring Bar Diameter
⌀32 mm (1.3 in)
Length
2880 mm (113.4 in.)
Height
1920 mm (76 in.)
Width
1710 mm (67.5 in.)
Weight
4200 kg (9260 lbs.)
Max Turning Diameter
⌀300 mm (11.8 in)
Max Turning Length
510 mm (20.1 in)
Through Hole Diameter
⌀66 mm (2.6 in)
Chuck Size
5 in
Speed
6000 rpm
Power
5.5 kW (7.5 Hp)
Torque
47 Nm (34.6 ft-lbs)
Rotary Tool Speed
6000 rpm
Rotary Tool Power
3.7 kW (5 Hp)
Rotary Tool Torque
24 Nm (17.3 ft-lbs)
