Amada H550EII Horizontal Band Saw (2023)
Have one to sell?
ConditionUsed
1 available
New in the Crate 22″ x 19″ New Amada Horizontal Billet Band Saw Model H550EII Features:
PRESSURE FLOW VALVE: The cutting process can be optimized just by setting up the Pressure Flow Valve to the target “material, shape, and size”.
CUTTING DEPTH SETTING UNIT: The blade descends horizontally. Tooling and dovetail grooving can be easily handled by adjusting a cutting end height.
LIGHT BEAM: The light beam unit allows for easy alignment of marks. One-touch operation of the manual feeder unit moves workpieces back and forth. In addition, the user-friendly double vise system is installed to clamp materials.

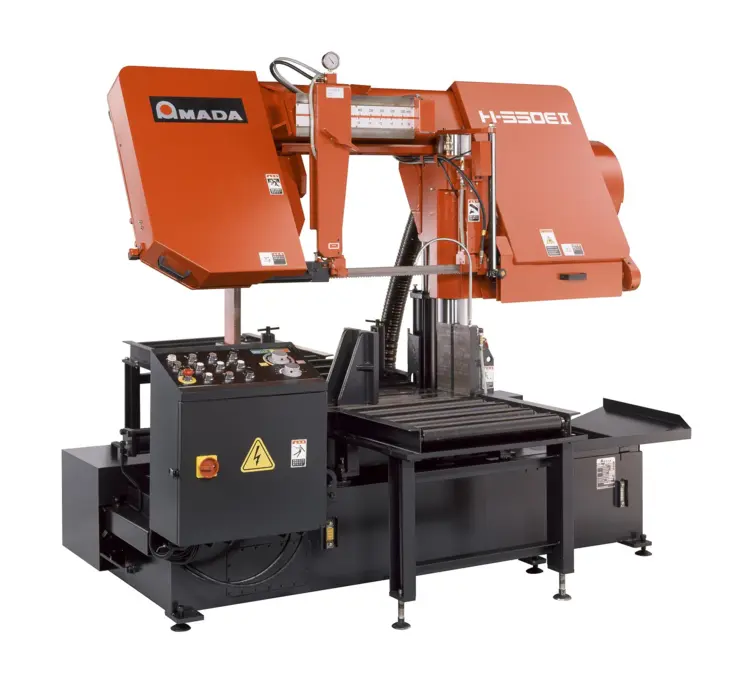

Amada Model H550EII 22″ x 19″ Horizontal Billet Band Saw
Cutting Capacity
Round (diameter) 7.87″-18.9″
Rectangle (W x H) 21.65″ x 18.9″
Work Load Capacity 4,409 lbs
Saw Blade
Blade Size (L x T x W) 16′ x 0.050″ x 1.5″
Blade Speed 56, 82, 115, 148, 180, 213, 246 ft/min
Tension Control Hydraulic
Blade Control
Top Limit Setting Manual Setting
Cutting Control Hydraulic Pressure & Flow Control Valve
Vise Operation
Type Main Split Vise
Control Hydraulic Full Stroke Cylinder
Motors
Saw Blade 7.5 HP
Cutting Fluid Pump 1/2 HP
Hydraulic Pump 2 HP
Power Requirement
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz, Required at factory voltage setting
Power Requirement 10 kVA
Cutting Fluid
Tank Capacity 21.1 gal
Pump Type Electric
Hydraulic
Tank Capacity 18.5 gal
Pressure Setting 498 psi
Chip Disposal Chip Conveyor
Machine Dimensions (W x L x H)
Head-Up Position 107.2″ x 72.8″ x 80.9″
Head Down Position 107.2″ x 72.8″ x 68.7″
Table Height 26.7″
Machine Weight 4,629 lbs
New In Crate
