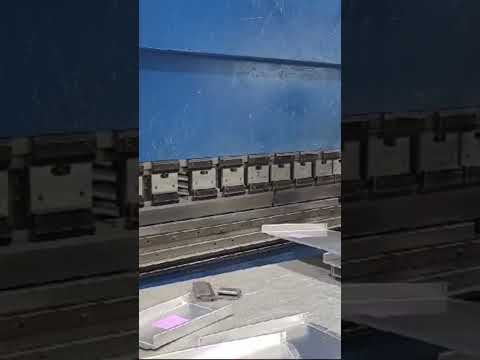

DURMA AD-R 30100 110 Ton X 10' CNC Hydraulic Press Brake (2007)
Have one to sell?
ConditionUsed
1 available
Low Hour Usage. Durma maintains status as the world’s largest volume producer of metal fabrication machinery. Durma manufactures CNC press brakes, turret presses, punching machines, lasers, shears, ironworkers, plate rolls, angle rolls, and saws.
FEATURES:
Largest Volume Press Brake Producer
Welded steel frame incorporates rigid stress relieved frames
Y1, Y2, and X axis
Durma CNC Advantage 2D Graphic Control unit
Excellent bending quality with X and Y motor drivers
650 mm length back gauge moving on ball-screwed shafts.
European tool holders
Hardened and ground tooling
Front sliding support arms with T-slots and Tilting Stop
DURMA AD-R 30100 CNC Hydraulic Press Brake (2007)
Bending power: 100 Ton Metric ” 110 Ton
Bending length: 3050mm / 120″
Distance between centers: 2600 mm / 100″
Backgauge travel: 650 mm / 25.6″
Backgauge finger blocks: 2
Number of sheet support arms: 2
Oil capacity: 100 Lt.
Motor power: 11 Kw/ 15HP / 220V / 3 Ph / 60 Hz
Stroke: 265 mm / 14″
Daylight: 530 mm / 20.8″
Throat depth: 410 mm / 16″
Bed height: 900 mm / 35-1/4″
Bed width: 104 mm / 4″
Length: 4200 mm / 150″
Height: 2750 mm / 108″
Width: 1670mm / 65″
Weight: 9250 kgs / 19,030 lbs.
