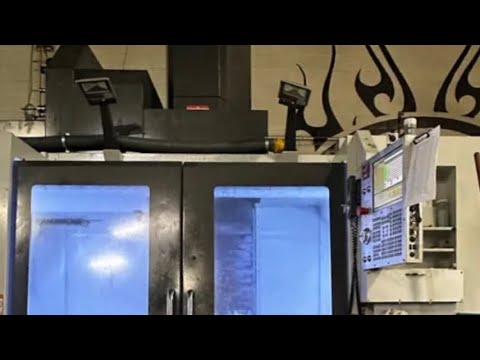

Haas VR-8 5 Axis Machining Center (2020)
Have one to sell?
ConditionUsed
1 available
The Haas VR-8 Vertical Machining Center is an American-made machining center that combines innovative design
principles, unique control features and quality construction to make it simple, versatile and affordable.
Haas VR Series VMCs are the perfect solutions when your 5-axis parts are too large to rotate using traditional rotary
tables and trunnions. Each VR Series machine features a large T-slot table that easily supports large workpieces and
fixtures, and a powerful 2-axis gimbaled spindle head that provides access to nearly any angle on the part for
complex shapes, undercuts, and 5-side machining. The result is a very versatile full 5-axis machine tool.

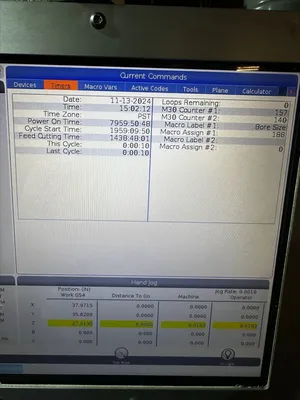

The Haas CNC control is designed to be easy to use without referencing the manual, using steps that are logical to
operators, and utilizing built-in software that makes producing parts – not programming – the operator’s key
thought.
Built using a wide-base, cast-iron frame, the VR-8, like all Haas machines, yields rigidity and damping beyond that
of machines using fabricated or weldment-type frames.
The machine’s design provides high rigidity and a clean work area. The powder-coated, full steel enclosure features
large doors for easy access to the worktable. These features, combined with local distributor service, make the Haas
VR-8 the standard for design innovation, quality and affordability
Haas VR-8 5 Axis Machining Center (2020)
X Axis 64.00 in 1626 mm
Y Axis 40.00 in 1016 mm
Z Axis 42.00 in 1067 mm
Spindle S.A.E METRIC
Max Rating 24.0 hp 18.0 kW
Max Speed 20000 rpm 20000 rpm
Max Torque 10.5 ft-lbf @ 12000 rpm 14.3 Nm @ 12000 rpm
Drive System Integral Spindle/Motor Integral Spindle/Motor
Taper HSK-A63 HSK-A63
Bearing Lubrication Grease Packed Grease Packed
Cooling Liquid Cooled Liquid Cooled
B Axis - Tilt S.A.E METRIC
Travel 120 ° to 120- ° 120 ° to 120- °
Max Speed 112 °/sec 112 °/sec
Max Torque 295 ft-lbf 400 Nm
Brake Torque 403 ft-lbf 547 Nm
C Axis - Rotation S.A.E METRIC
Travel ± 245 ° to 245- ° 245 ° to 245- °
Max Speed 208 °/sec 208 °/sec
Max Torque 264 ft-lbf 359 Nm
Brake Torque 442 ft-lbf 600 Nm
Table S.A.E METRIC
Length 64.0 in 1626 mm
Width 36.0 in 914 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 7 7
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 600 ipm 15.2 m/min
Rapids on Y 600 ipm 15.2 m/min
Rapids on Z 600 ipm 15.2 m/min
Axis Motors S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 3400 lbf 15124 N
Max Thrust Z 5600 lbf 24910 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 50+1 50+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 12 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.80 s
Chip-to-Chip (avg) 3.60 s 3.60 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Air Requirements S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 195.0 in x 120.0 in x 142.0 in 495 cm x 305 cm x 361 cm
Export Crate 195.0 in x 123.0 in x 144.0 in 495 cm x 313 cm x 366 cm
Weight 24800 lb 11250.0 kg
Domestic Pallet w/EC Option 195 in x 120 in x 143 in 495 cm x 305 cm x 363 cm
Export Crate w/EC Option 195 in x 123 in x 147 in 495 cm x 312 cm x 373 cm
Weight w/EC Option 25100 lb 11385 kg
Electrical Specification S.A.E METRIC
Spindle Speed 20000 rpm 20000 rpm
Drive System Integral Spindle/Motor Integral Spindle/Motor
Spindle Power 24.0 hp 18.0 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Coolant Through Spindle
2-Axis Gimbaled Spindle Head
24-HP (17.9 kW) 20,000-rpm HSK-A63 integral-motor spindle
Heavy-Duty Sheet Metal Enclosure
Rugged Cast-Iron Construction

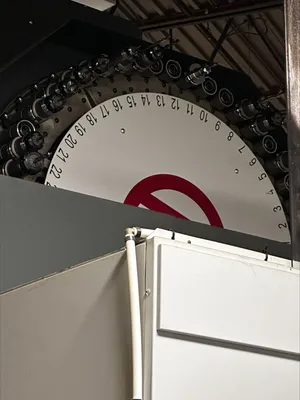

50+1 Tool Side-Mount Tool Changer
HSK-A63 Spindle Taper
Extended Z-Axis Clearance 8” column
95-Gallon Coolant Tank, ¾ HP pump
Chip Auger
Window Blast
Auto Door
CNC Control Cabinet Cooler
Wireless Intuitive Probing System, Renishaw
Dynamic Work Offsets and Tool Center Point Control
Remote Jog Handle with touchscreen display
Rigid Tapping
