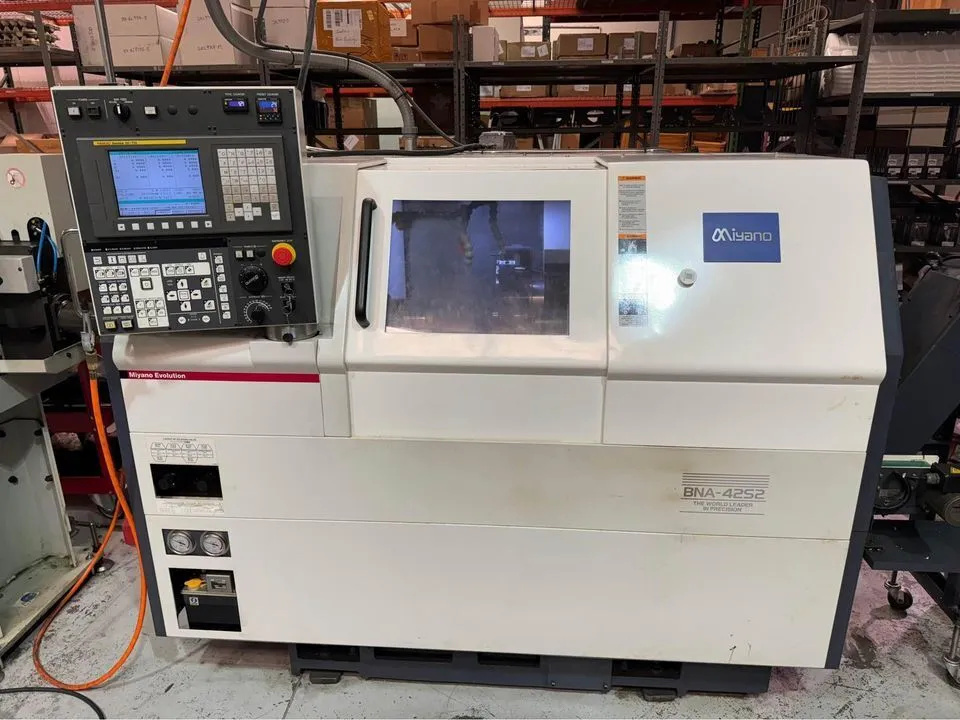

Miyano BNA42S 5 Axis CNC Lathe (2016)
Have one to sell?
ConditionUsed
1 available
Live Tool, Barfeed, Fanuc 0iTD, Chip Conveyor, Featuring 2 spindles and 1 turret, the entry-level BNA-42S offers excellent value for simpler requirements whilst offering back machining abilities over the BNA-42C model:
The turret features a half-indexing mechanism enabling 2 fixed tools to be mounted at each of the 8 positions.
All turret stations are driven (max 2.8kW, 5000rpm)
Compact footprint
Latest control system reduces idle time by 27% and machining time by 13% compared to previous model.
Miyano BNA42S 5 Axis CNC Lathe (2016)
Maximum Machining Diameter of Bar Work SP1/SP2 ø42mm/ø34mm
Maximum Machining Length 100mm
Power Chuck SP1/SP2 5″/—
Spindle motor(15min./Cont.) SP1 7.5/5.5kW
SP2 5.5/3.7kW
Spindle Speed Range SP1 60 – 6,000min-1
SP2 50 – 5,000min-1
Type of Turret 8St.Turret
Shank Height of Square Turning Tool □20mm
Diameter of Drill Shank ø25mm
Slide Stroke X axis 135mm
Z axis 235mm
B axis(Z2 axis) 310mm
Maximum Number of Revolving Tool 8
Floor Space 2,150×1,290mm
Machine Height 1,660mm
Machine Weight 2,800kg
Live Tool, Barfeed, Fanuc 0iTD, Iemca Master 865 Verso Barfeed, Chip Conveyor,
