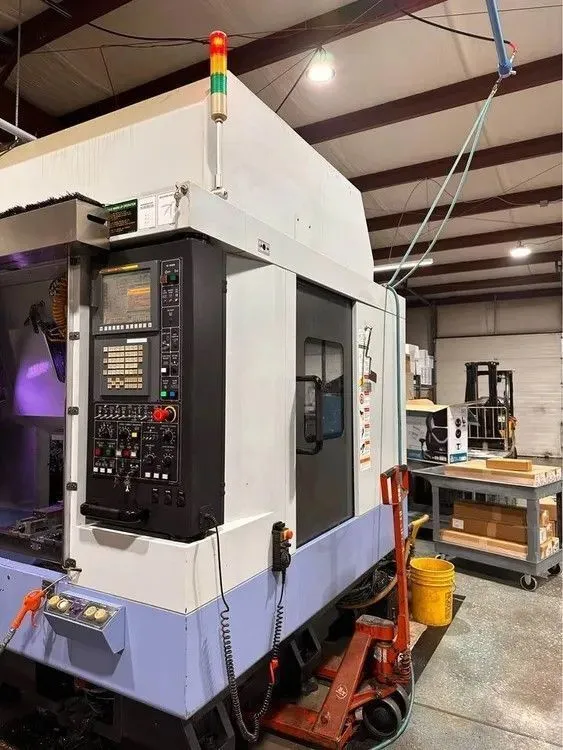

Doosan DT 360D/40 Drill & Tap Machine (2014)
Have one to sell?
ConditionUsed
1 available
2 Rotary Tables, 12000 rpm, 40 Taper, 14 ATC
Doosan DT 360D/40 Drill & Tap Machine (2014)
Travels:
--X: 20.5"
--Y: 14.2"
--Z: 13.8"
Table Pallet Size: 25.6" X 14.8"
Spindle Speed: 12,000 Rpm
Taper: Cat 40 Big Plus
Spindle Horsepower: 10 Hp
Atc Capacity: 14
Rapid Traverse X, Y, Z: 1,890 Ipm
Floor Space Required: L: 151.6" X W: 74.9" X H: 113"
Chip Conveyor Extension: 36.22"
Machine Weight: 14,570 Lbs.
( 2) Rotary tables
Fanuc Control
Chip Conveyor
300 Psi Thru Spindle Coolant
