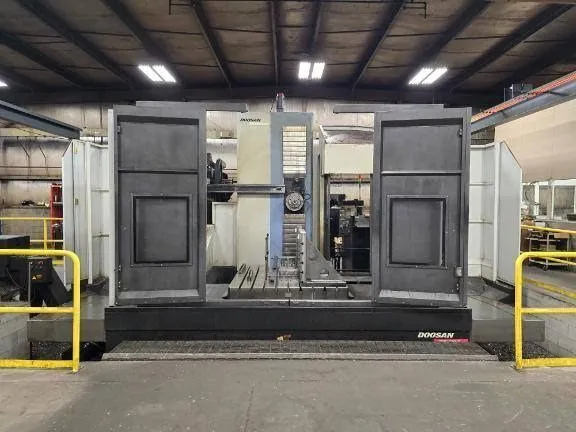

Doosan DBC-130II 5" CNC Table Type Boring Mill (2014)

Doosan DBC-130II 5" CNC Table Type Boring Mill (2014)

Spindle Diameter 5.12"
Spindle Taper Cat 50
Y-Axis Head Vertical Travel 78.74"
X-Axis Table Travel 118.12"
W-Axis Spindle Travel 27.6"
Z-Axis Column Infeed Travel 62.99"
B-Axis Rotary Table 62.99" x 70.9"
B-Axis Table Rotation .001 Degree
Rotary Table Weight Capacity 33,068 Lbs
Maximum Spindle Speeds 5 to 2500 RPM
Main Motor Drive 35 HP
Rapid Traverse Rate (All Axes) 393.7 IPM
Cutting Feed Rate (X/Y/Z Axes) 1-157.5 IPM
Overall Height 196.9"
Floor Space 295.3" x 322.8"
Estimated Machine Weight 94,797 Lbs
