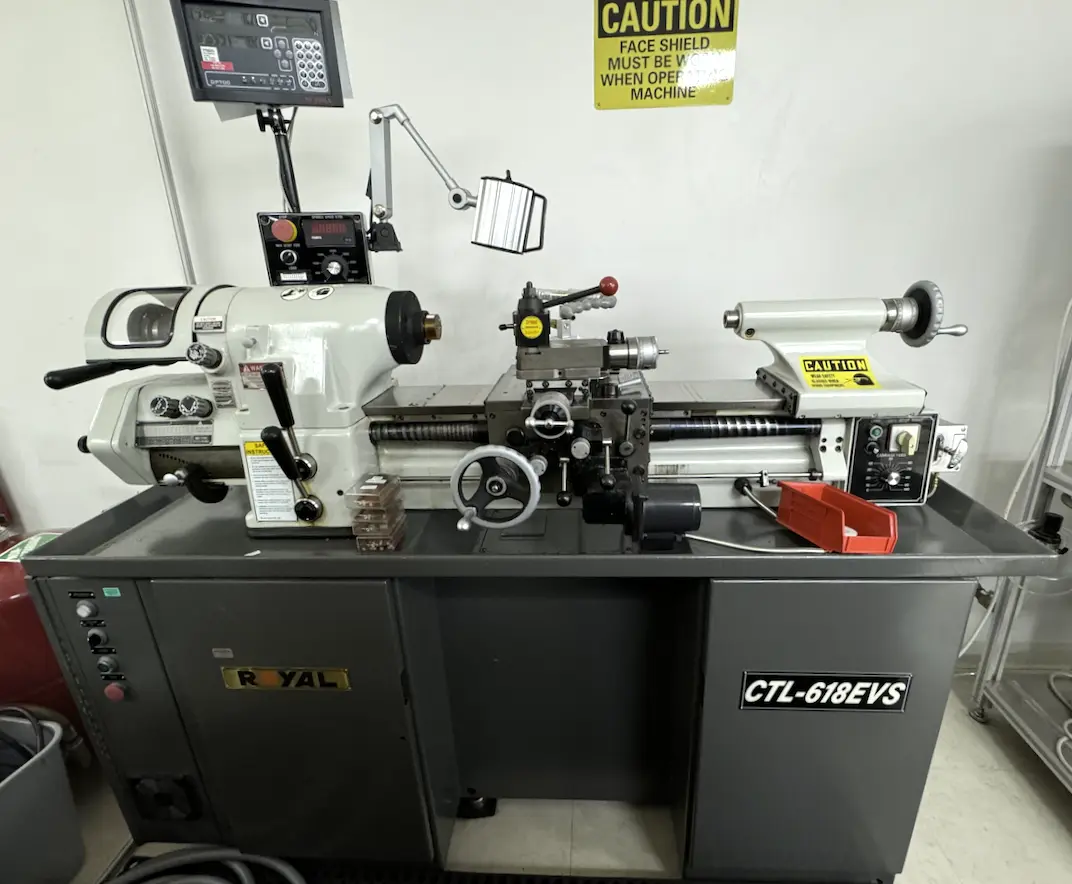

Specifications CTL-618e CTL-618EVS
Spindle capacity with chuck 6"
Spindle capacity with expanding collets 3"
Spindle capacity with round 5C collets 1-1/16"
Spindle capacity with hexagon 5C collets 7/8"
Spindle capacity with square 5C collets 3/4"
Spindle capacity with step chucks 1-1/16"~6"
Spindle nose diameter Ø 2-3/16"
Spindle nose I.D./ O.D. 5C (10˚) / 4˚ Taper
Spindle speeds (Variable) 0~4000 R.P.M. 0
Inverter spindle motor 3HP 3HP
Hole through spindle 1-1/4"
Bar stock diameter (5C collet) Ø 1-1/16"
Distance between centers 18"
Swing over bed 11"
Swing over cross slide 6"
Carriage power feed range 3/16"~4"
Cross slide power feed range 5/16"~7"
Cross slide travel 6" 6"
Quick-action compound slide travel 0.1"
Compound slide travel 3"
Coolant pump 1/8HP, 220V, 3PH 1/8HP
Feed motor Inverter 1/2HP 220V, 70W
Tailstock spindle travel 3-3/4"
Range of threads 0.2~6.35mm (120~4 TPI) 0.275~2.7mm (108~11 TPI)
Number of thread changes - 36
Approximate net/gross weigth . 2,300 / 2,530 lbs.
Machine dimensions (L x W x H) 73" x 30" x 67"
Newall DP700 Three-Axis DRO
