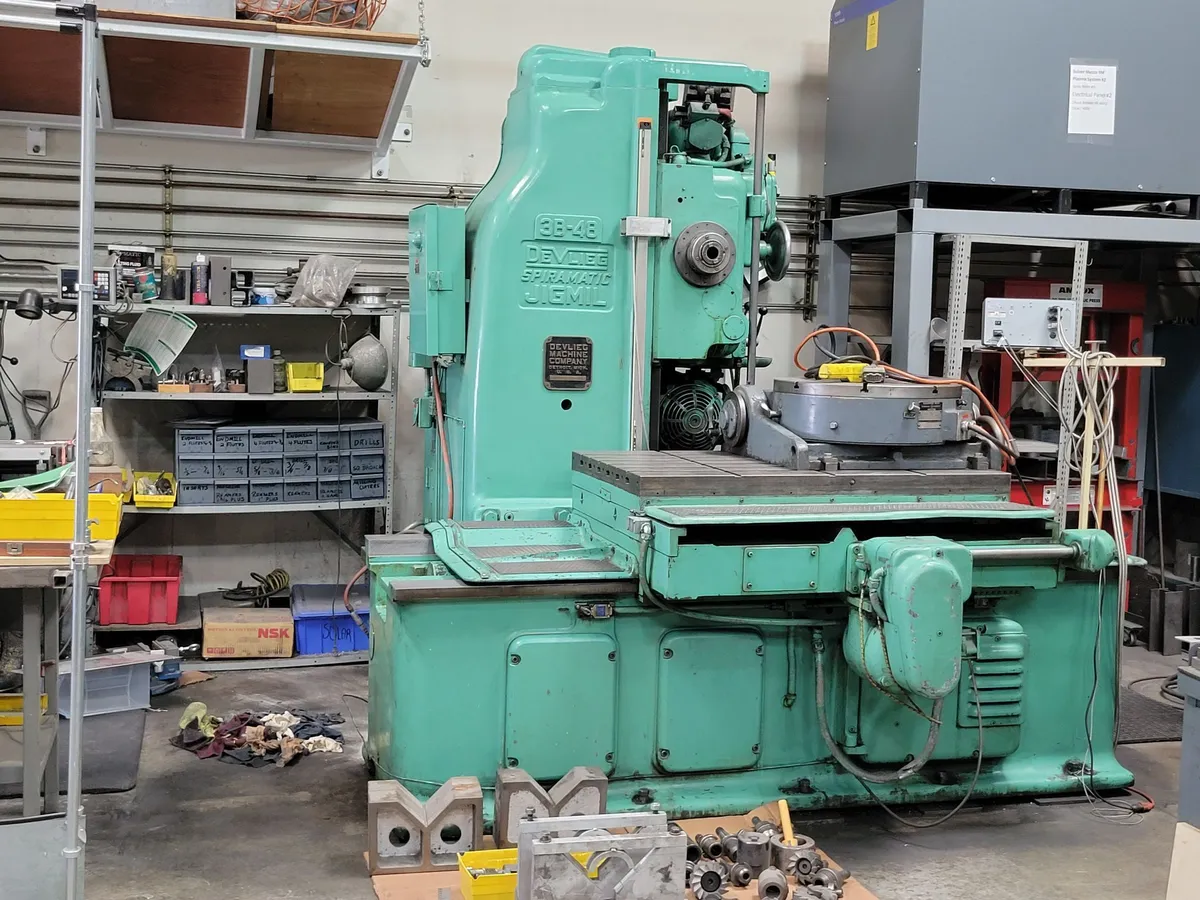

Devlieg 3B-48 Precision Jig Mill
Have one to sell?
ConditionUsed
1 available
3" Spindle, 24" Tilting Rotary Table, Digital Readout
Devlieg 3B-48 Precision Jig Mill
Diameter of Spindle: 3”
Spindle Speeds: (16) 25-1200 RPM
High: 12 134-1200
Spindle Feeds: (6) .002 - 20
Table Feeds: (12) .3 - 14 IPM
Feeds: 6 .003, .0017, .0011, .012, .0075, .0047
Vertical Spindle Travel: 36”
Feed out of Spindle: 16”
Spindle Taper: #40
Size of Table: 30” x 48”
Longitudinal Travel: 52”
Table Cross Travel: 16”
Main motor: 7.5 HP
Electricals: 220Volt
Approx Weight: 22,000 lbs
Approx Dimensions: 98” H x 90” W x 116” L
24" Tilting Rotary Table
Digital Read Out
Overhauled in 1974 - From Aerospace
schematic diagrams
operating manuals
