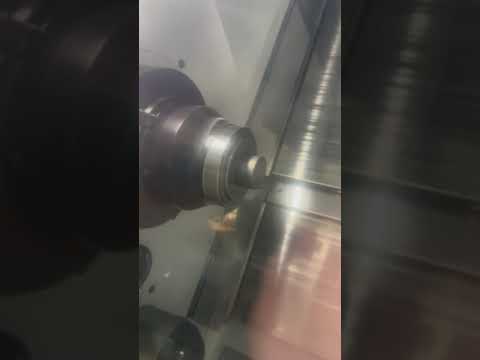

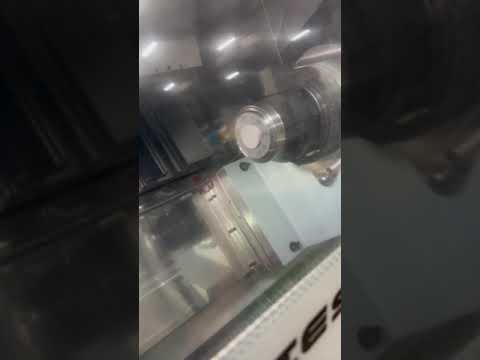

Eurotech TA-20-YS-640 CNC Lathe With Live Tool and SubSpindle (2022)
Have one to sell?
ConditionUsed
1 available
Live Tool and SubSpindle, LNS Barfeed, Fanuc 32iTB with 15 " touch screen and new iHMI
Eurotech TA-20-YS-640 CNC Lathe With Live Tool and SubSpindle (2022)
Max diameter of swinging over bed: 760 mm
Max diameter of swinging over slides: 600 mm
Max turning diameter: 460 mm
Distance between center of spindles: 625 mm
X- axis travel: 310 mm
Z-axis travel: 640 mm
Y-axis travel: +70 -50
B-axis travel: 640 mm
Max speed: 3500 rpm
Bearing outside diameter: 200 mm
Bearing inside diameter: 130 mm
Spindle nose inside diameter: 91 mm
Draw tube bore: 82 mm
Chuck diameter: 255 / 315 mm
Chuck bore: 82 mm
Turning torque: 1020 Nm max
Number of positions on turret: 14 Section on tools: 25x25 mm
Max. diam. swing over bed (in)
29.92
Max. diam. swing over slides (in)
23.62
Max. turning DIA. (in)
18.11
Dist. btwn spindle & tailstock center (in) Z400
18.62
Dist. btwn spindle & tailstock center (in) Z640
28.07
Dist. btwn spindle & tailstock center (in) Z1100
46.18
Dist. btwn center of spindles (in) Z640
Dist. btwn center of spindles (in) Z1100
X-axis travel (in)
12.2
Z-axis travel (in) Z400
15.75
Z-axis travel (in) Z640
25.2
Z-axis travel (in) Z1100
43.31
Y-axis travel (in)
B-axis travel (in) Z400
15.75
B-axis travel (in) Z640
25.2
B-axis travel (in) Z1100
43.1
Spindle Speeds
3500 RPM
Fast feedrate X (m/min) Fast feedrate Z (m/min)
30
Fast feedrate Y (m/min)
Fast feedrate B (m/min)
11
Axis acceleration
1g=9,8 m/s2
Spindle inside DIA. (in)
2.87
Max. bar DIA. (in)
2.6
Spindle power (HP (max./S6 40%)
29.5 / 20.1
Turning torque (lb.ft)
269.9 (MAX) 210.9 (S6 40%)
Morse Cone DIA. 90x120 LIVE CENTER
CM5
Morse Cone DIA. 90x120 ROTARY QUILL
CM3
Tailstock travel (in) Z400
15.75
Tailstock travel (in) Z640
25.2
Tailstock travel (in) Z1100
43.31
Max. force (lbf)
980
Number of positions
15
Section of tools (mm)
25×25(Dia 50)
Changing time
30 DEG .2s – 180 DEG .5s
Interlocking force at 45 bar (kgf)
5090
Coolant tank (gal) Z400 LATERAL
57.2
Coolant tank (gal) Z400 REAR
52
Coolant tank (gal) Z640 LATERAL
59.8
Coolant tank (gal) Z640 REAR
52
Coolant tank (gal) Z1100
67.6
Hydraulic oil tank (liters)
2.6
Lubrication oil tank (liters)
1
Installed power KVA
30
Machine dimensions:
2542x1760x2120 mm
Fanuc 32iTB with 15 " touch screen and new iHMI
LNS Quick Load Servo S3 Barfeed
15 Station Turret
Live Tool
Sub Spindle
Optional accessories for TA series
Machine language: English
G codes type A in Fanuc control
Machine Manuals in pdf format available for download in
N-55 15 position turret
Standard hydraulic cylinder in main spindle (TA20 Autoblok VNK 150-67)
Air blow over main spindle
Removable tool presetter
Side exit chip conveyor for Z=640 bed (standard type)
Machine status indicator light
Tool life management function
Tool load monitoring function
High pressure coolant pump (6 bar)
High pressure coolant pumps (6 bar + 15 bar)
Coolant filter 250μm with scraper type cleaning system
Pneumatic, automatic, programmable parts catcher with conveyor
Barfeed interface - Unimag
Parts ejector for subspindle (Pneumatic type) with adjustable stroke of 100mm
Coolant through subspindle
Optional tool holders
TTL/10400/02 Axial driven toolholder ER32 with internal coolant 70bar (12000rpm)
TTL/10400/05 Radial driven toolholder ER32 (12000rpm)
Wrench for ER16 ring nut (330.12.0634)
Wrench for ER32 ring nut (330.12.0637)
LNS Quickload Servo 3+ Barfeed – 4FT
Transformer 51KVA
Materials:
Some aluminum run
Some UHMW – plastic run
Some stainless run
No steel or any exotics
Coolant:
7090 Semi Synthetic
Water based coolant
