| size | 41" x 22" | 41" x 22" |
| X Travel | 41" | 1,041.4 mm |
| Y Travel | 22" | 558.8 mm |
| Z Travel | 20" | 508 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| # Axis | 3 | 3 |
| Dimensions | 122.4" x 95" x 117.5" | 122.4" x 95" x 117.5" |
| Weight | 14,330 | 14,330 |

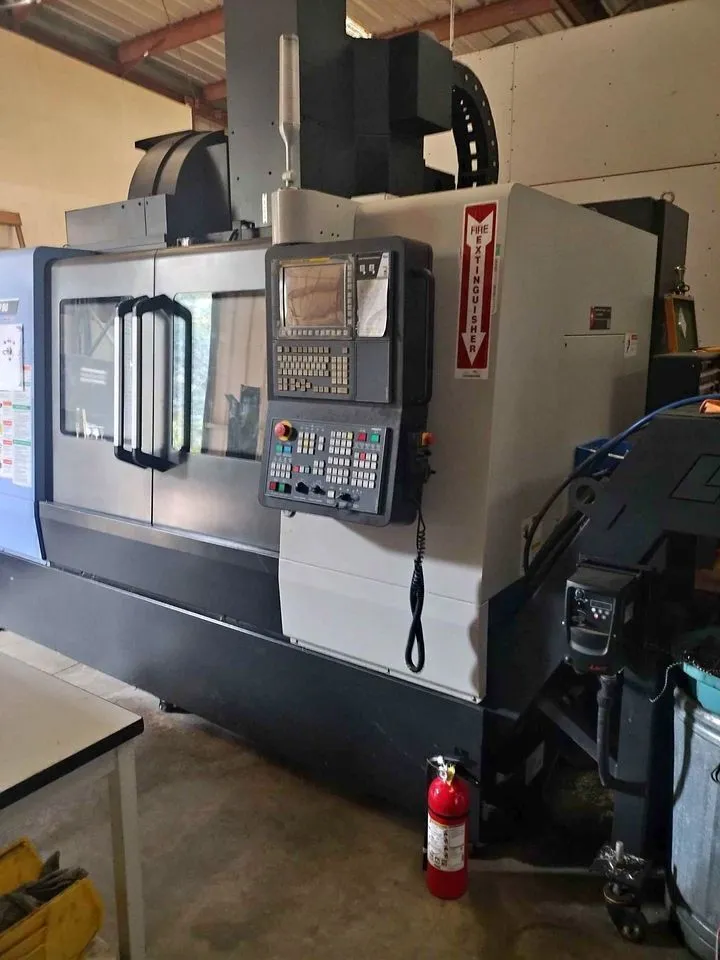

Doosan DNM 5700 Vertical Machining Center (2017)
X axis travel: 41.3 in
Y axis travel: 22.4 in
Z axis travel: 20.1 in
Cutting feed rate: 590 IPM
Rapid traverse: 1417 IPM
Table dimensions: 51.2" x 22.4"
Max. table load: 2205 lbs
Spindle motor: 15.0 hp
Spindle speed: 8000.0 rpm
Atc capacity: 30.0
Spindle taper: CAT-40
# axis: 3.0
Capacity: 30 Station Side Mounted
Max tool weight: 17.6 lbs
Max tool dia: 3.1″ -4.9″
Max tool length: 11.81″
Tool changing time: 1.2 Seconds
Fanuc Series CNC Control
Chip Conveyor
30 Position Tool Changer
Table Vices
