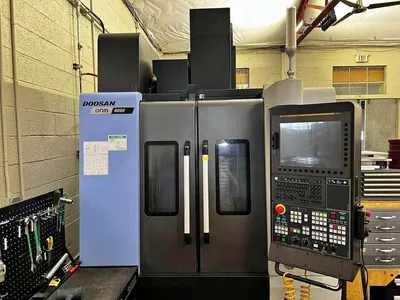

Doosan DNM4000 4 Axis Vertical Machining Center (2022)
Sold

Doosan DNM4000 4 Axis Vertical Machining Center (2022)

Machining Centers, Vertical
Manufacturer:
DOOSAN
Model:
DNM4000
Year:
2022
Stock #:
92697
4th Axis Rotary Table, Low Hours, Probing, 12k Spindle, The DNM Series delivers the most value for your investment as the best-in-class vertical machining center fully equipped with the most standard features built-in. This powerfully productive machine features a BIGPLUS spindle, dual chip augers, FANUC 0i-M controls with DN Solutions (formerly Doosan Machine Tools) Easy Operation Package (EOP), through-spindle coolant, spindle chiller, and more. Get the machine that will give you the power to MAKE MORE.
size20" x 15" x 18"20" x 15" x 18"
X Travel20"508 mm
Y Travel15"381 mm
Z Travel18"457.2 mm
Power25 hp18.6 kW
RPM12,000 RPM12,000 RPM
# ATC2020
Taper4040
Table-W15"381 mm
Table-L25"635 mm
# Axis44
Dimensions112.5" x 65" x 108.4"112.5" x 65" x 108.4"
Weight7,275 lbs.7,275 lbs.

Doosan DNM4000 4 Axis Vertical Machining Center (2022)
Travels -
Travel Distance X-axis - 520 mm (20.5 in)
Travel Distance Y-axis - 400 mm (15.7 in)
Travel Distance Z-axis - 480 mm (18.9 in)
Rapid Traverse X-axis - 48 m/min (1889 in/min)
Rapid Traverse Y-axis - 48 m/min (1889 in/min)
Rapid Traverse Z-axis - 48 m/min (1889 in/min)
Table Size - 650 x 400 mm (25.6 x 15.7 in)
Max Load - 400 kg (882 lbs)
Spindle to Table Distance - 150 - 630 mm (5.9 - 24.8 in)
Spindle Speed - 12000 rpm
Power - 18.5 kW (25 Hp)
Torque - 118 Nm (87 ft-lbs)
Tooling - CAT40
Changer Capacity - 20
Max Diameter - 90/125 mm (3.5/4.9 in)
Max Length - 270 mm (10.6 in)

Machine Size & Weight -
Length - 2,858 mm (112.5 in)
Width - 1,650 mm (65 in)
Height - 2,753 mm (108.4 in)

Weight - 3,300 kg (7,275 lbs.)

MR160 RAE 10 -4th Axis Rotary Table
