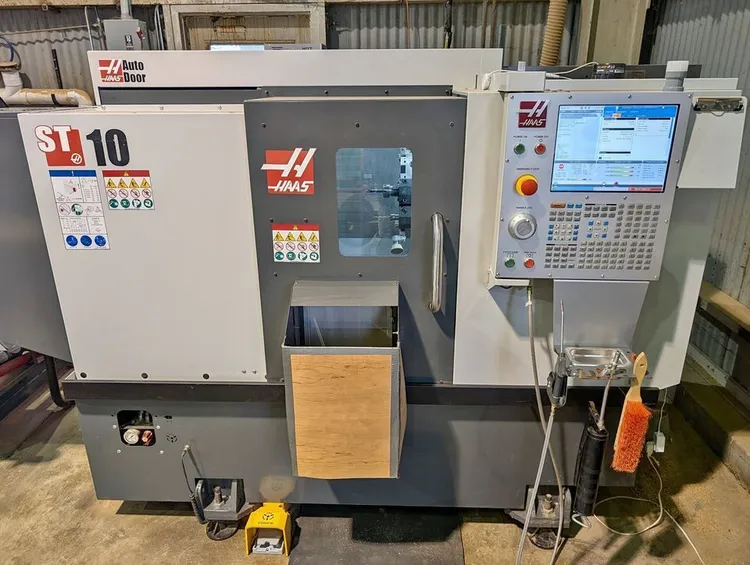

Haas ST-10 CNC Lathe W/ Barfeeder (2020)
Have one to sell?
ConditionUsed
1 available
The Haas ST Series high-performance turning centers were designed from the ground up to provide setup flexibility, extreme rigidity, and high thermal stability. The ST-10 has an extra-small footprint, yet provides a generous work envelope.
Swing Over Apron: 25.25"
Swing Over Cross Slide: 16.25"
Max Cutting Diameter: 14.0"
X-axis travel: 7.8"
Z-Axis Travel: 14"
Rapid Traverse (X,Z): 1200 IPM
Spindle Bore: 2.3"
Bar Capacity: 1.75"
Turret Position: 12
Spindle Motor: 15 HP
Bar Feeder: Maximum Capacity 1.75"
Comes with Liners for 0.375"-1.5"
- 1GB Onboard Memory
- 30 Gallon integrated coolant tank with 3/4 HP Pump
- 6000 RPM Spindle, 15HP, A2-5 Spindle Nose 1.75" Max bar capacity
- Auto Door
- 12 Station Turret w/ various tooling blocks
- 6.5" Samchully Hydraulic Chuck w/ hard jaws & various collet pads (0.75"-1.625")
- Power Failure Detection Module
- Ethernet & Wireless Interface
- Touch Screen Controls
- Automatic Tool Pre-setter
- Chuck Air Blast
- Parts Catcher
- User-Definable Macros
- Visual Part Programming System
