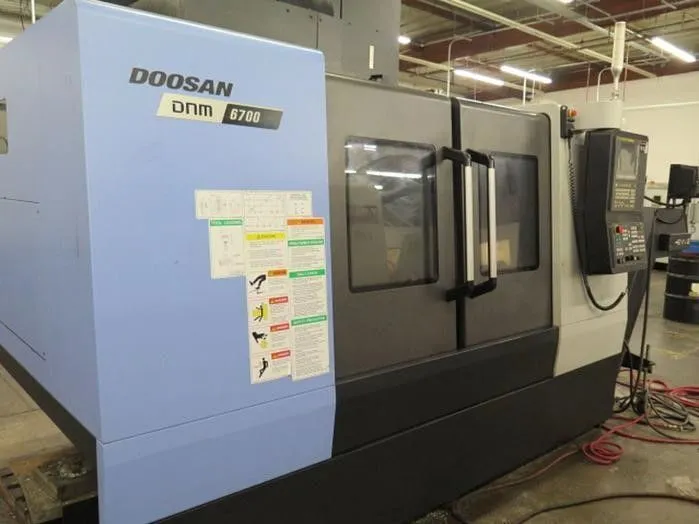

Doosan DNM-6700 Vertical Machining Center (2018)

Doosan DNM-6700 Vertical Machining Center (2018)

SPECIFICATIONS:
Travels:
X-Axis: 51.2″
Y-Axis: 26.4″
Z-Axis: 24.6″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 30.5″
Table:
Length: 59.1″
Width: 26.4″
Number of Std T-Slots: 5
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 2866 lbs
Spindle:
Taper Size: CAT 40 Big Plus
Speed Range: 12,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.2 Seconds
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 33 kva / 3-Phase
Overall Dimensions: 102.2″ x 131.9″ x 122.8″ High
Weight: 18,739 lbs
EQUIPPED WITH:
Doosan-Fanuc i Series CNC Control
12,000 RPM High Speed Spindle
1417 IPM Fast Rapids Traverse Rate
