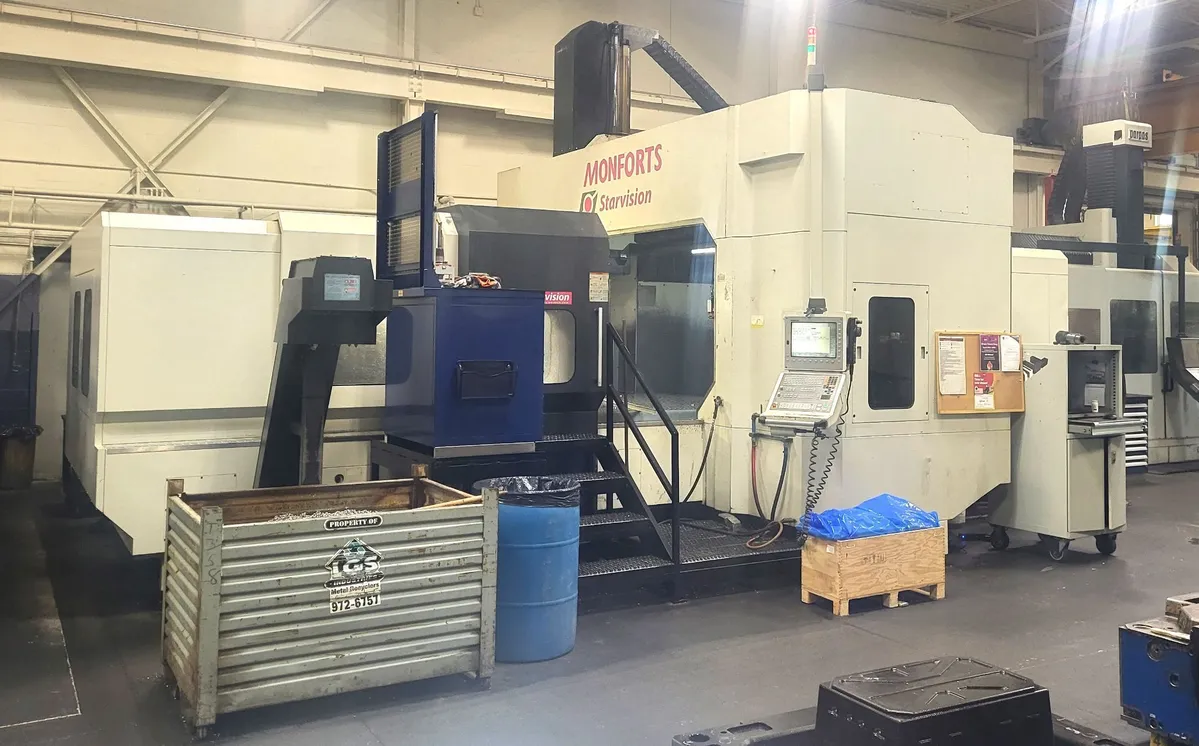

Starvision PC-3223 Bridge Type Vertical Machining Center (2013)

Starvision PC-3223 Bridge Type Vertical Machining Center (2013)

Model Unit PC-3223/26
Travel
X axis mm 3,200 / 125"
Y axis mm 2,300 / 90"
Z axis mm 1,000 / 39.37
Distance from spindle nose to table mm 150-1,150
Distance between two column mm 2,500 / 98.43"
Working table
Table Length mm 3,000 / 120"
Table Width mm 2,000 / 78.74
Table Load kg 11,000/ 24,250 Lbs
T- Slot (Width x Number x Pitch)mm 28x11x180
Spindle
Spindle Taper - CAT-50
Spindle Speed rpm 6,000
Spindle motor(cont./30 minutes rated) kw 18.5 / 22
Feed
Rapid Traverse(X/Y/Z) m/min 12 / 12 / 12
Cutting feedrate mm/min 7,000
Accuracy
Positioning Accuracy mm ±0.005 / 300 ; ±0.015 / Full travel
mm P0.035 P0.045
Repeatability mm ±0.003
mm Ps0.028 Ps0.03
ATC
Tool magazine capacity pcs 90
Max. tool size (full pocket/next pockets empty) mm Ø125/245
Max. tool length mm 350
Max. tool weight kg 20
Others
Power required kva 65
Pneumatic input pressure kg/cm2 6.5
Machine net weight tons 35
Floor space (LxWxH) 409" x 255.9"
