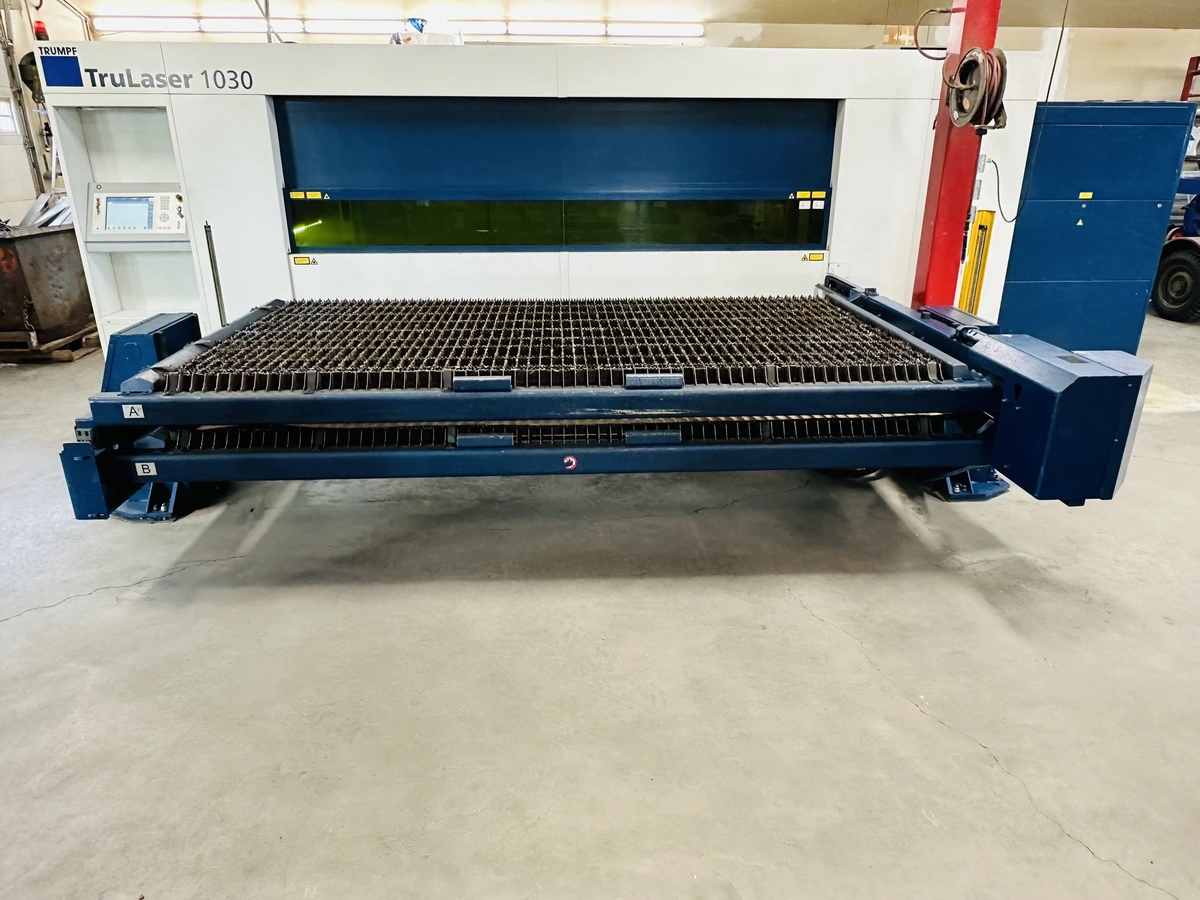

Trumpf Trulaser 1030 Fiber Laser (2014)

Trumpf Trulaser 1030 Fiber Laser (2014)

TruLaser 1030 fiber TruLaser 1040 fiber TruLaser 1060 fiber

DIMENSIONS
LENGTH 9333 mm 11150 mm 15500 mm
WIDTH 5990 mm 6650 mm 7150 mm
HEIGHT 2200 mm 2200 mm 2200 mm
WEIGHT
WEIGHT OF BASIC MACHINE 9400 kg 1 12000 kg 1 16500 kg 1
MAXIMUM SPEED
SIMULTANEOUS 140 m/min 140 m/min 140 m/min
WORKING RANGE
X AXIS 3000 mm 4000 mm 6000 mm
Y AXIS 1500 mm 2000 mm 2500 mm
MAXIMUM WORKPIECE WEIGHT WITHOUT HEAVY-DUTY PALLET CHANGER 900 kg 2000 kg 2900 kg
MAXIMUM WORKPIECE WEIGHT WITH HEAVY-DUTY PALLET CHANGER 1800 kg 3300 kg 4900 kg
MAXIMUM WORKPIECE WEIGHT ON BOTH PALLETS WITH HEAVY-DUTY PALLET CHANGER 2200 kg 2 3900 kg 2 5700 kg 2
LASER-SPECIFIC DATA - TRUFIBER 3001
MAXIMUM LASER POWER 3000 W 3000 W 3000 W
MAXIMUM SHEET THICKNESS, MILD STEEL 20 mm 20 mm 20 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL 15 mm 15 mm 15 mm
MAXIMUM SHEET THICKNESS, ALUMINUM 15 mm 15 mm 15 mm
MAXIMUM SHEET THICKNESS, COPPER 6 mm 6 mm 6 mm
MAXIMUM SHEET THICKNESS, BRASS 6 mm 6 mm 6 mm
LASER-SPECIFIC DATA - TRUFIBER 4001
MAXIMUM LASER POWER 4000 W 4000 W 4000 W
MAXIMUM SHEET THICKNESS, STAINLESS STEEL 20 mm 20 mm 20 mm
MAXIMUM SHEET THICKNESS, MILD STEEL 20 mm 20 mm 20 mm
MAXIMUM SHEET THICKNESS, ALUMINUM 20 mm 20 mm 20 mm
MAXIMUM SHEET THICKNESS, COPPER 8 mm 8 mm 8 mm
MAXIMUM SHEET THICKNESS, BRASS 8 mm 8 mm 8 mm
LASER-SPECIFIC DATA - TRUDISK 4001
MAXIMUM LASER POWER 4000 W 4000 W 4000 W
MAXIMUM SHEET THICKNESS, MILD STEEL 20 mm 20 mm 20 mm
MAXIMUM MILD STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 25 mm 25 mm 25 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL 20 mm 20 mm 20 mm
MAXIMUM STAINLESS STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 35 mm 35 mm 35 mm
MAXIMUM SHEET THICKNESS, ALUMINUM 20 mm 20 mm 20 mm
MAXIMUM SHEET THICKNESS, COPPER 8 mm 8 mm 8 mm
MAXIMUM SHEET THICKNESS, BRASS 8 mm 8 mm 8 mm
LASER-SPECIFIC DATA - TRUDISK 6001
MAXIMUM LASER POWER 6000 W 6000 W 6000 W
MAXIMUM SHEET THICKNESS, MILD STEEL 25 mm 25 mm 25 mm
MAXIMUM MILD STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 32 mm 32 mm 32 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL 25 mm 25 mm 25 mm
MAXIMUM STAINLESS STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 35 mm 35 mm 35 mm
MAXIMUM SHEET THICKNESS, ALUMINUM 25 mm 25 mm 25 mm
MAXIMUM SHEET THICKNESS, COPPER 10 mm 10 mm 10 mm
MAXIMUM SHEET THICKNESS, BRASS 10 mm 10 mm 10 mm
LASER-SPECIFIC DATA - TRUDISK 8001
MAXIMUM LASER POWER 8000 W 8000 W 8000 W
MAXIMUM SHEET THICKNESS, MILD STEEL 25 mm 25 mm 25 mm
MAXIMUM MILD STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 32 mm 32 mm 32 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL 30 mm 30 mm 30 mm
MAXIMUM SHEET THICKNESS, ALUMINUM 25 mm 25 mm 25 mm
MAXIMUM SHEET THICKNESS, COPPER 10 mm 10 mm 10 mm
MAXIMUM SHEET THICKNESS, BRASS 10 mm 10 mm 10 mm
LASER-SPECIFIC DATA - TRUDISK 10001
MAXIMUM LASER POWER 10000 W 10000 W 10000 W
MAXIMUM SHEET THICKNESS, MILD STEEL 30 mm 30 mm 30 mm
MAXIMUM MILD STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 32 mm 32 mm 32 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL 40 mm 40 mm 40 mm
MAXIMUM STAINLESS STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 40 mm 40 mm 40 mm
MAXIMUM SHEET THICKNESS, ALUMINUM 30 mm 30 mm 30 mm
MAXIMUM SHEET THICKNESS, COPPER 15 mm 15 mm 15 mm
MAXIMUM SHEET THICKNESS, BRASS 12 mm 12 mm 12 mm
LASER-SPECIFIC DATA - TRUDISK 12001
MAXIMUM LASER POWER 12000 W 12000 W 12000 W
MAXIMUM SHEET THICKNESS, MILD STEEL 30 mm 30 mm 30 mm
MAXIMUM MILD STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 35 mm 35 mm 35 mm
MAXIMUM SHEET THICKNESS, STAINLESS STEEL 40 mm 40 mm 40 mm
MAXIMUM STAINLESS STEEL SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 50 mm 50 mm 50 mm
MAXIMUM SHEET THICKNESS, ALUMINUM 30 mm 30 mm 30 mm
MAXIMUM ALUMINUM SHEET THICKNESS WITH CUTTING PACKAGE FOR THICK SHEETS 30 mm 30 mm 30 mm
MAXIMUM SHEET THICKNESS, COPPER 12.7 mm 12.7 mm 12.7 mm
MAXIMUM SHEET THICKNESS, BRASS 12.7 mm 12.7 mm 12.7 mm
CONSUMPTION VALUES
AVERAGE POWER INPUT IN PRODUCTION - TRUFIBER 3001 12 kW 12 kW 12 kW
AVERAGE POWER INPUT IN PRODUCTION - TRUFIBER 4001 13 kW 13 kW 13 kW
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 4001 13 kW 13 kW 13 kW
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 6001 15 kW 15 kW 15 kW
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 10001 19 kW 19 kW 19 kW
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 12001 25 kW 25 kW 25 kW
