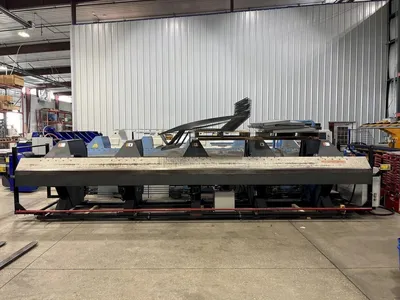

JORNS AG NORMA-LINE-125SW-1250-ROSO-CNC800-6.4-shs CNC Folding Machine (2013)

JORNS AG NORMA-LINE-125SW-1250-ROSO-CNC800-6.4-shs CNC Folding Machine (2013)

Technical data1.2.1

Dimensions:
length overall 7300mm / 287.4”
width overall 2100mm / 82.68”
height overall 1700mm / 66.93”

Effective length: 6410mm / 252.4”

Insertion depth: 1250 mm / 49.21”
Sheet thickness: sheet steel (St40) 400N/mm2 1.25mm / 0.49”
Stainless sheet steel (V2A)600Nmm2 0.8mm / 0.031”
Aluminum (AlMn1)220N/mm2 2.0mm / 0.079”

Weight:.4400kg / 9700 lbs

Performance
Closing pressure:
Maximum 50% of the stated sheet metal thickness as per the related type of material. For minimum 15-timessheet metal thickness as leg length.

Hydraulic unit:
Conveying capacity28lt./min.
Operating pressure180bar
Performance4.6kW
Tank capacity65lt
Cymax com.no.IHS.00065.F0467 /Order: 0012502

Upper cheek:
Opening stroke (max.)200 mm
Bending cheek:bending angle (max.)145°
Stop: advance speed250 mm/s
Stop depth (min.)20mm
Stop depth (max.)1250mm
Shear (SL):advance speed750mm/s
Cutting performance (St40)1.5 mm
Upper cheek adjustment:
Sheet thickness (min.)0.5 mm
Sheet thickness (max.)2mm
Upper cheek tension:
Prestress range 0–2mm
