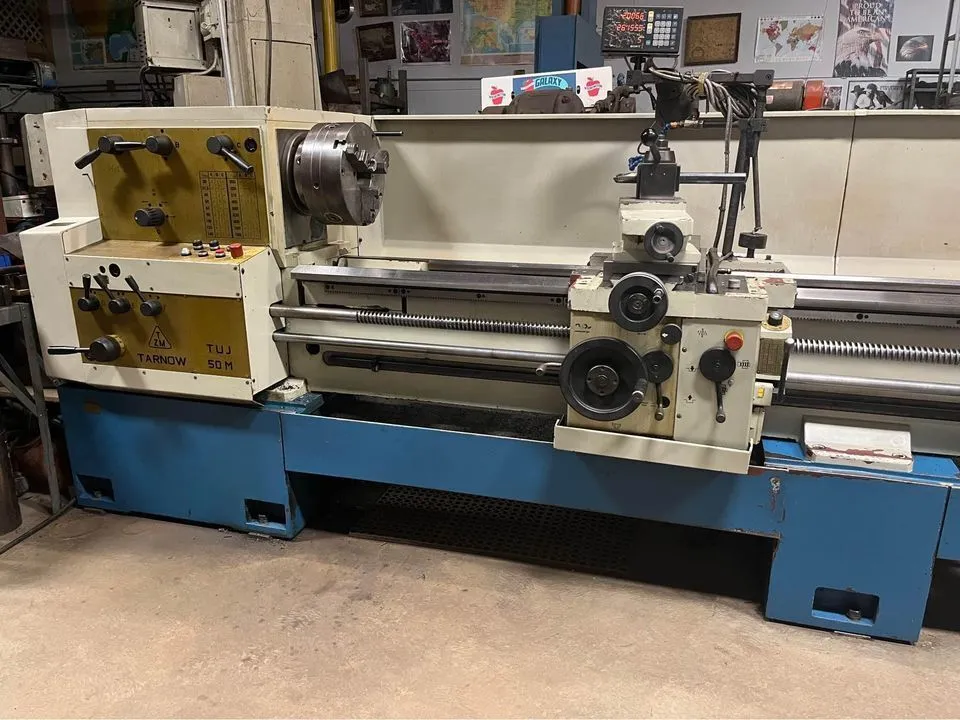

Tarnow 22” x 120” TUJ-50M Engine Lathe (2000)
Have one to sell?
ConditionUsed
1 available
22" x 120"
Tarnow 22” x 120” TUJ-50M Gap Bed Engine Lathe (2000)
Swing Over Bed 22″
Swing over Removable Gap 31-1/2″
Swing over Cross Slide 14-1/2
Distance Between Centers 120″
Length of Gap 11.25″
Spindle Speeds 20-1600 RPM
Longitudinal Feed .0007″-.720″
Cross Feed .0004″ -.360″
Threads-Inch 1/4-56 TPI
Spindle Hole Diameter 3-1/2″
Spindle Nose D1-11″ Camlock
Approx. Dimensions 184″ x 54″ x 54″ H
Main Motor 15 HP, 3 Phase, 60 Cycle
Dual Voltage 220/440 V, 3 PH, wired 440 at this time
- Sony LH52 Digital Readout
- Dorian Quick Change Tool Post
- Steady Rest
- 12” 3 Jaw SET-TRU Chuck
- Hard Jaws
- 12+ sets of Soft Jaws
- Available Tracer Attachment
- Flood Coolant
- All Manuals
