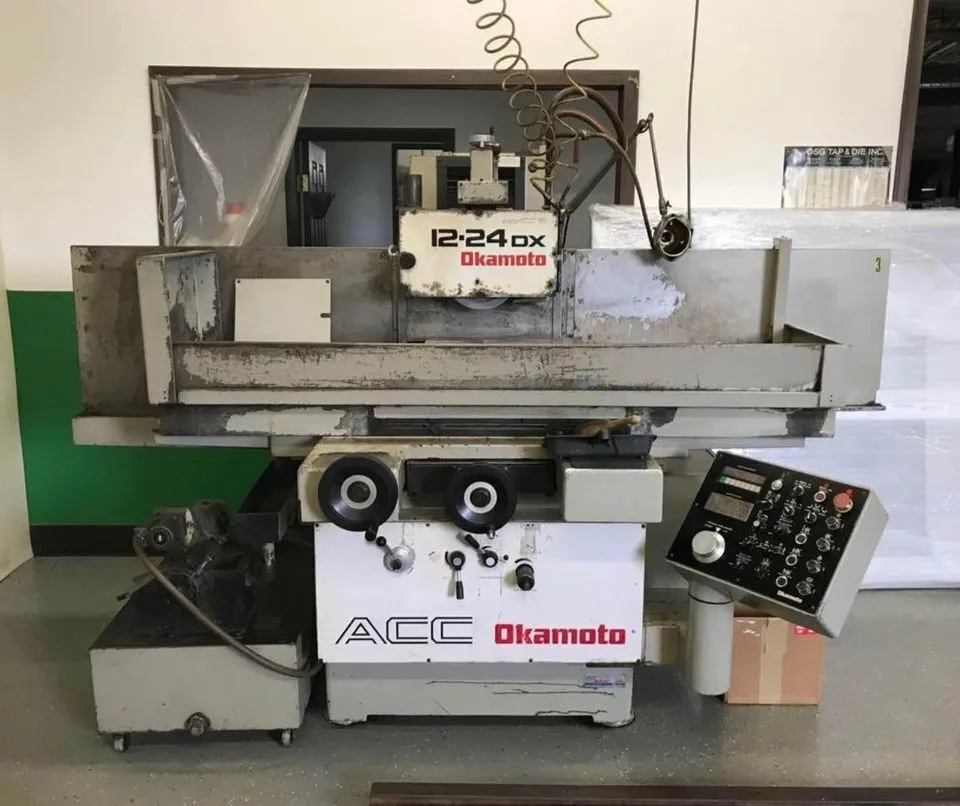

Okamoto ACC 12.24DX 3 Axis Hydraulic Surface Grinder

Okamoto ACC 12.24DX 3 Axis Hydraulic Surface Grinder

Table working capacity: 12" X 24"
Surface Length: 25.6"
Surface Width: 12"
Max Long Feed: 29.5"
Max Cross Travel: 13.4"
Max Dist. Under 12" Wheel to Table: 13.6"
Table Load Capacity: 925 Lbs.
T-Slots: .67" X 3"
X-Axis Longitudinal Feed: 30"
Max Surface Speed: 6500 SFPM
Table Feed Rate: 1-82 Feet Per Minute
Z-Axis Crossfeed: 13.3"
Intermittent Traverse Feed: .02-.80
Y-Axis Vertical Feed: .001-40 IPM
Grinding Wheel: 14" X 1.5" X 5"
Grinding Wheel Speed: 500-1800 RPM
Grinding Wheel Motor: 5 HP
Power Supply: 230/460, 3ph, 60 Hz
Auto Incremental Downfeed 0.00005" - 0.0015"
