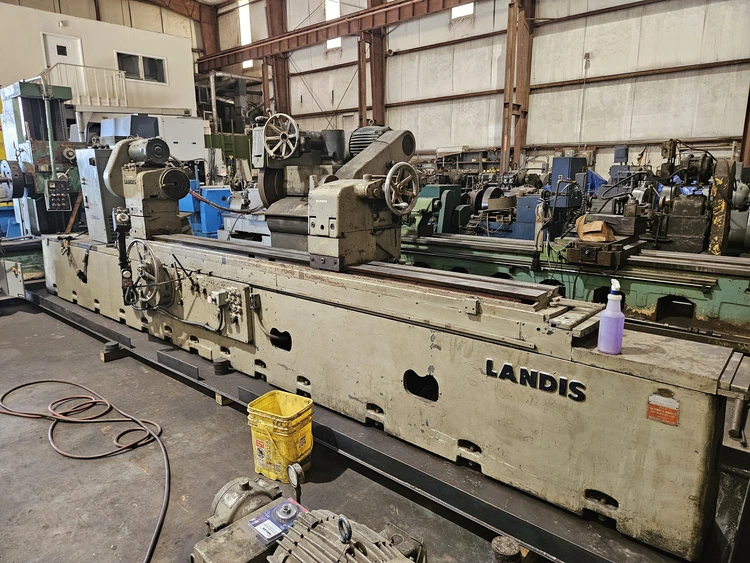

Landis 34" x 120" Plain Cylindrical Grinder

Landis 34" x 120" Plain Cylindrical Grinder

Nominal Work Swing…………34″
Distance Between Centers – Maximum…………120″
Work Carriage:
– Traverse Speed…………2 – 144 IPM
– Traverse Speed per Turn of Handwheel…………0.100″ (slow) & 0.500″ (fast)
Wheelhead and Wheelfeed:
– Grinding Wheel Size – 30"
– Grinding Wheel Speeds…………668/1003 RPM
– Hydraulic Rapid Infeed…………3.5″ (Max) 1.625″ (Min)
Ranges:
– Total Feed…………0.001″ on diameters 0 – 0.999″
– Fast Feed…………0.001″ on diameters 0 – 0.999″
– Medium Feed…………0.001″ on diameters 0 – 0.099″
– Microfeed…………0.001″ on diameters 0 – 0.009″
Rates:
– Fast Feed…………0.0001 ips on diameters 0 – 0.0099″
– Medium Feed…………0.0001 ips on diameters 0 – 0.0099″
– Microfeed…………0.00001 ips on diameters 0 – 0.00099″
Traverse Grinding:
– Increments at Table Reversal…………0.0001″ at diameters 0 – 0.0099
– Number of Sparkout Traverses…………0 – 9
Headstock and Tailstock:
– Work Centers…………#14 Jarno
– Tailstock Center Movement…………Lever and Handwheel
– Work Speeds (dead spindle)…………30 – 48 – 75 – 150 RPM
** Raised From 20"
