Murata MD120G Twin Spindle Live Tool Lathe (2006)
Have one to sell?
ConditionUsed
1 available
4 Axis, Twin Spindle Twin Turret, Fanuc 31, With its dual spindles and automated part turnaround system, the MD120G delivers a multitude of options to meet distinct requirements and configurations. This 8-inch twin spindle automated turning center excels with its advanced live tooling functionalities, encompassing both milling and drilling capabilities.
Murata MD120G Twin Spindle Live Tool Lathe (2006)
Maximum Chuck Size 10 in
Number of Turret Stations 10 x 2
Maximum Spindle Speed 4500 rpm
Spindle Drive Motor 11 kW/30 min
Total Machine Weight (Approx.) 11023 lb
Live Tool Drive Motor 2.5 kW
Live Tool Maximum Speed 4000 rpm
Gantry Loader Workpiece Handling Capacity Φ120 mm x 80 mm , up to 3.0kg/piece
Spindle Nose Size JIS A2-5
Spec. of Axes X-axis 24 m/min | Z-axis 24 m/min

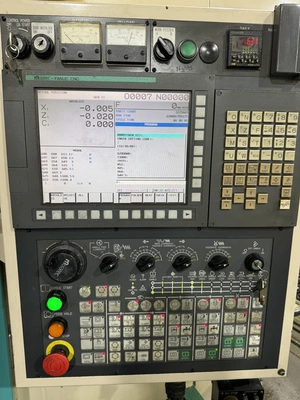

Fanuc 31i Control
o 10-station turrets
o Spindle Nose: A2-5
o Spindle RPM: 4,500
o Spindle Power: 11 kW
o Live Tool RPM: 4,000
o Live Tool Power: 2.2kW
o Live Tooling heads available
o Part flipper and regrip location included
o Work Stocker/Part Feeder table included
o Machines have been well maintained and
only machined aluminum
