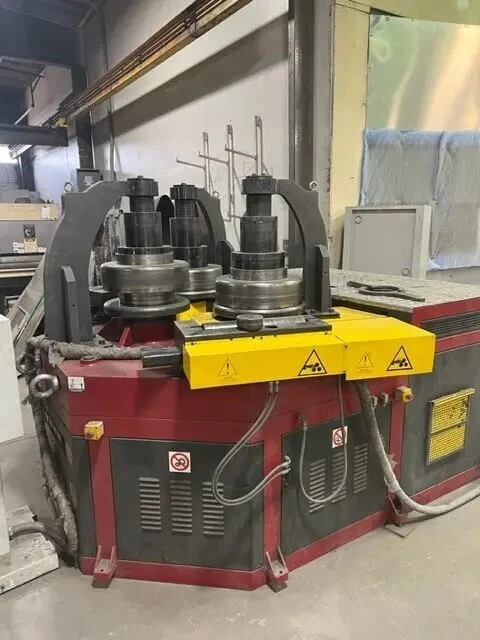

Tauring Alpha 200 Angle Bending Roll (2012)
Have one to sell?
ConditionUsed
1 available
10" x 10" x 3/4" Initial pinch, three gear driven Roll Bender. All three shafts are hardened,
ground high strength steel, which are mounted on taper roller bearings for
high radial or axial loads. The top roll is equipped with a friction mechanical
device for rim speed compensation. The frame is made out of rugged steel.
The Alpha200 comes with a self-braking motor and is in conformity with
“CE” Regulations (89/392 CE). Electromagnetic compatibility, (89/336) Low
tension (73/23,93/68).
Tauring Alpha 200 Type PQ10 Angle Bending Roll (2012)
Round Tube - Size
10.75" x 0.5"
Square Tube - Size
10" x 10" x .40"
Square Tube Min. Radius
80"
Flat Bar (Hard Way) - Size
10" x 2.3 / Min. Radius: 32"
Angle (Leg Out) - Size
.8" x 7.8" x 0.78"
Angle (Leg Out) Min. Radius
78"
H Beam - Size
IPE 330 / Min. Radius: 75"
Round Tube Min. Radius
87"
Shaft Diameter
19.29"
Standard Shaft Working Length
15.75"
Shaft Revolutions Per Minute
7.1 RPM
Motor
24.1 HP
Voltage
230 Volt/3 Phase/60Hz
Driven Rolls
3
Universal Tool Set
1
Machine Dimensions
41" W x 61" L x 74" H
Machine Weight
22,046 Lbs
Hydraulic Roll Adjustment
Standard Dies
Numerous custom shim dies for rolling of angles and other shapes
1-1/2" Pipe dies
(4) Heavy duty custom roller stands. (2000 lb capacity)
