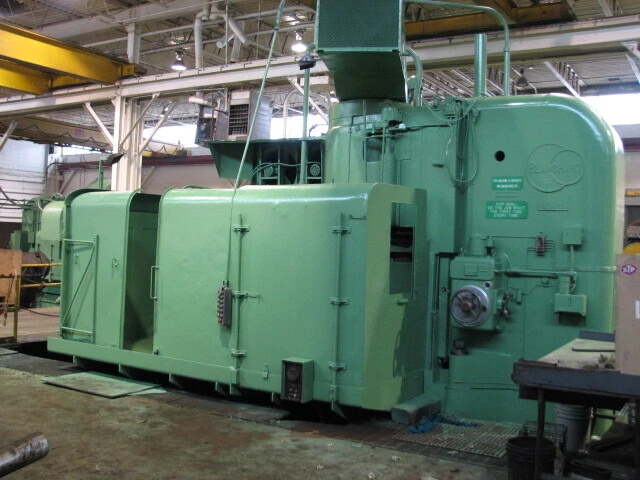

Blanchard Model 54-100 100" Rotary Surface Grinder (1973)

Blanchard Model 54-100 Rotary Surface Grinder
Magnetic Chuck: 100"
Grinding Wheel: 54"
Swing Inside Guards: 130"
Main Spindle Drive: 150 HP
Vertical Travel: 48"
Table Speeds: 2.6, 4.1, 6.6, 10.2 RPM
Incremental Downfeeds: 0-80 IPM
Total WEIGHT aprox. 45.000 kgs

HEAD & COLUMN ASSEMBLY
WEIGHT aprox. 20.000 kgs
Length: 3.500 mm
Width: 1.900 mm
Height: 2.600 mm

BASE AND CHUCK ASSEMBLY
WEIGHT aprox. (with the electrical cabinet) = 25.000 kgs
Length: 6.000 mm
Width: 2.600 mm
Height: 1.700 mm

Electrical Cabinet ( can be can be transported on top of the base)
Length: 2.000 mm
Width: 550 mm
Height: 2.200 mm
