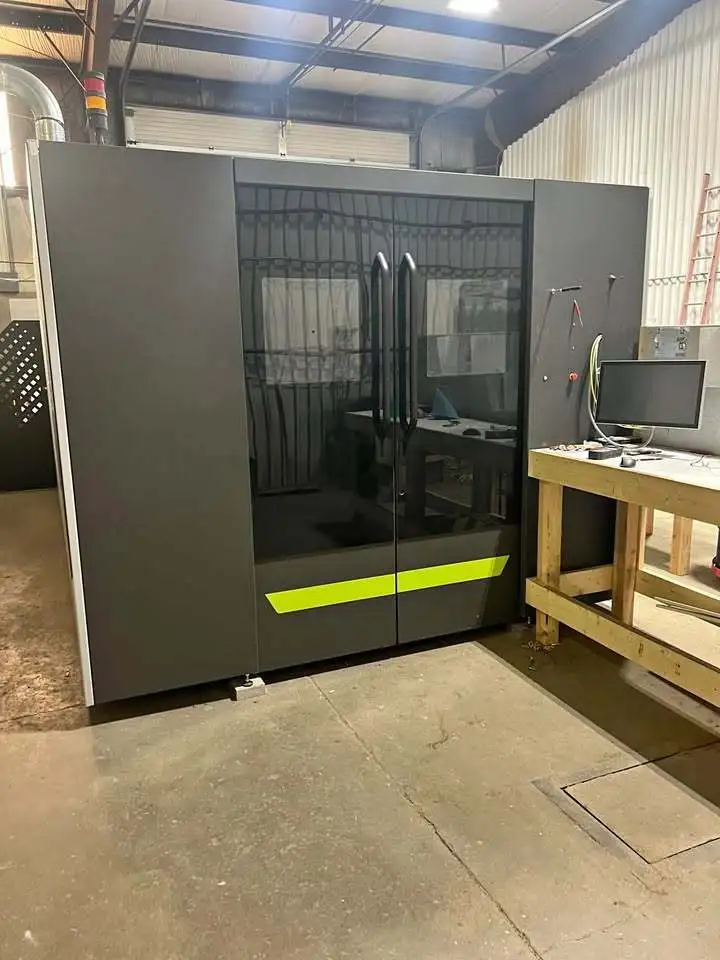

DNE LC3 5' x 10' 6kw FIber Laser (2022)

DNE LC3 5' x 10' 6kw FIber Laser (2022)

Power: 6000W
Laser Type: Fiber
Sheet Size: 5′ x 10′
Max Positioning Speed X/Y: 3937 IPM
Max Simultaneous Positioning Speed: 5511 IPM
Bilateral Repeatability of Positioning of One Axis R (Following ISO 230-2:2014(E)): ±0.002″
Bilateral Repeatability of Positioning of One Axis M (Following ISO 230-2:2014(E)): ±0.004″
Edge Detection Accuracy: ±0.019″
Max Weight of Workpiece: 1,984 Lbs
Table Changeover Time: 24 s
Polarization: Unpolarized
Wavelength: 1 µm
Pulse Frequency: 1 – 2500HZ

Maximum Sheet Thicknesses:
Steel: 0.750″
Stainless Steel: 0.750″
Aluminum: 0.750″
Brass: 0.375″
Copper: 0.375″ Total Electrical Consumption of System: 29kW
