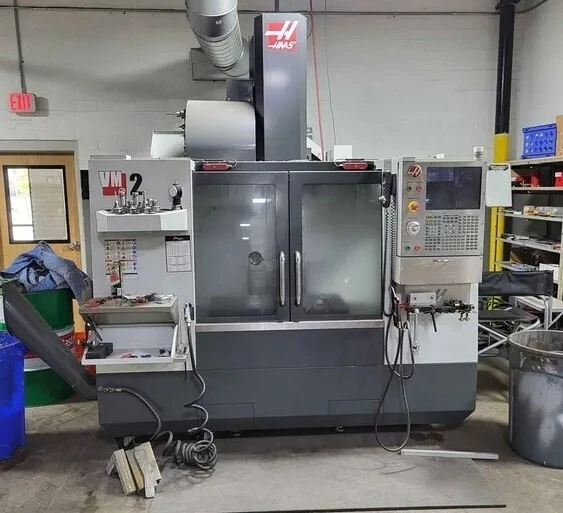

Haas VM-2 Vertical Machining Center (2015)

Haas VM-2 Vertical Machining Center (2015)

TRAVELS S.A.E METRIC
X Axis 30.00 in 762 mm
Y Axis 20.00 in 508 mm
Z Axis 20.00 in 508 mm
Spindle Nose to Table (~ max) 24.0 in 610 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
SPINDLE S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 12000 rpm 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
TABLE S.A.E METRIC
Length 36.0 in 914 mm
Width 18.0 in 457 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.38 in 111 mm
Number of Std T-Slots 7 in Y and 3 in X 7 in Y and 3 in X
Max Weight on Table (evenly distributed) 3000 lb 1361 kg
FEEDRATES S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 710 ipm 18.0 m/min
Rapids on Y 710 ipm 18.0 m/min
Rapids on Z 710 ipm 18.0 m/min
AXIS MOTORS S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 3400 lbf 15124 N
Max Thrust Z 5600 lbf 24910 N
TOOL CHANGER S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 11 in 279 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.80 s
Chip-to-Chip (avg) 3.60 s 3.60 s
GENERAL S.A.E METRIC
Coolant Capacity 55 gal 208 L
AIR REQUIREMENTS S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Domestic Pallet 102.0 in x 106.0 in x 102.0 in 260 cm x 270 cm x 260 cm
Export Pallet 100.0 in x 91.5 in x 101.0 in 254 cm x 233 cm x 257 cm
Weight 7900 lb 4264.0 kg
Domestic Pallet w/50+1 SMTC 102 in x 106 in x 110 in 260 cm x 270 cm x 279 cm
Export Crate w/50+1 SMTC 102 in x 109 in x 116 in 260 cm x 277 cm x 295 cm
Weight w/50+1 SMTC 9700 lb 4400 kg
Domestic Pallet w/70+1 SMTC 102.0 in x 109.0 in x 132.5 in 259 cm x 277 cm x 337 cm
Export Pallet w/70+1 SMTC 102.0 in x 109.0 in x 132.5 in 259 cm x 277 cm x 337 cm
Weight w/70+1 SMTC 9,920 lb 4,500.0 kg
ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed 12000 rpm 12000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
