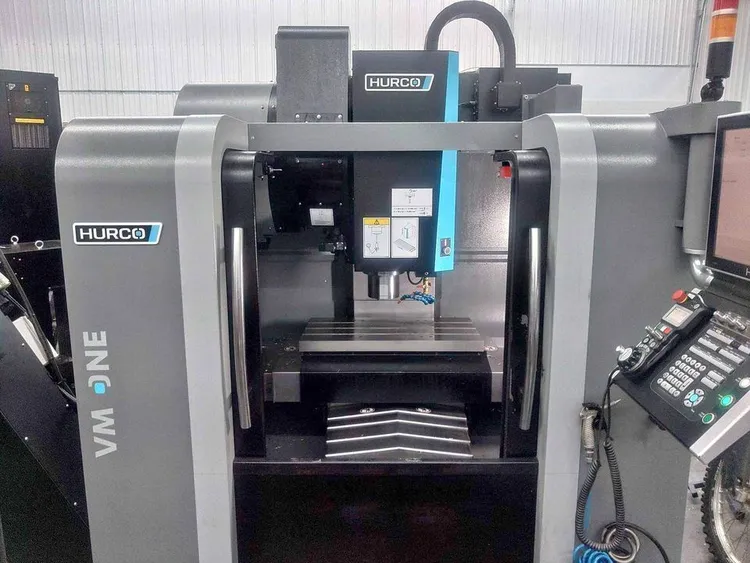

Hurco VM1 Vertical Machining Center (2020)

Hurco VM ONE Vertical Machining Center (2020)

TRAVELS & CAPACITY
X, Y, Z Axis Travel 26 x 16 x 14 in (660 x 406 x 356 mm)
T-Slot Size 3 x .71 on 3.94 Centers (3 x 18 mm)
Max. Weight on Table 3,300 lbs (1,500 kg)
Spindle Nose to Table Min./Max. 3 / 17 in (76 / 432 mm)
Table Size 30 x 16 in (762 x 406 mm)
SPINDLE
Max. Spindle Speed 8,000 rpm
Spindle Power (peak - 1 min) 10 hp (10 HP (7.5 kW))
Spindle Torque (peak - 1 min) 36 ft. lbs @ 1450 rpm (48.8 Nm @ 1450 RPM)
TOOL CHANGER
Tool Type CAT 40 / Big Plus® (CAT/BT 40)
Number Of Tools 16
Max Tool Diameter 3.5 in (90 mm)
Max Tool Length 7.9 in (200 mm)
Max Tool Weight 15.4 lbs (7 kg)
FEEDRATES
Rapid Traverse X,Y,Z Axis 1,102 in/min (25.5 m/minute)
Max Programmable Feedrate 1,102 inches/minute (25.5 m/minute)
SIZE
Max. Operating Floor Space (w/ Doors Open) 126.1 x 114.1 in (3,202.9 x 2,898.1 mm)
Floor Space Required (W x D x H) 72.5” x 70.6” x 87.2”
Machine Operating Height 94.3 in (2,395.2 mm)
Machine Weight 6,393 lb (2,900 kg)
