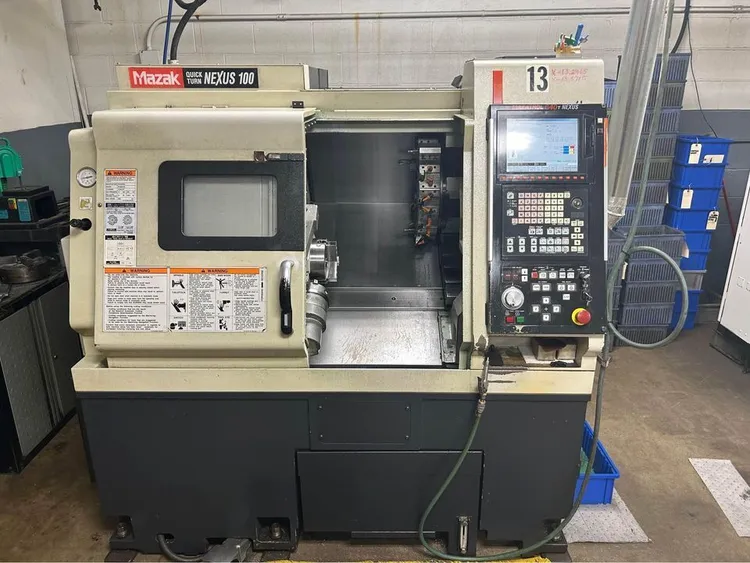

Mazak Quick Turn Nexus 100 QTN-100 CNC Lathe (2006)
Have one to sell?
ConditionUsed
1 available
2 Axis, 6" Chuck, Mazatrol 640T Nexus
Mazak Quick Turn Nexus 100 QTN-100 CNC Lathe (2006)
Maximum Swing………………………….21.6″
Swing Over Cross Slide………………… 11.0″
Standard Machining Diameter……………..7.37″
Maximum Machining Diameter…………….. 11.0″
Maximum Machining Length………………. 12.1″
Spindle Motor…………………… 15 / 10 (30 MIN/CONT.)
Spindle Bore…………………………. 2.4″
Standard Bar Capacity…………………. 1-5/8″
Spindle Speed………………………… 6,000 RPM
Number of Spindle Speed Ranges…………. 1
Spindle Nose…………………………. A2-5
Turret Type………………………….. DRUM TURRET
Number of Tools………………………. 12
Mazatrol 640T Nexus Control
Automatic Tool Eye
12 Position Drum Turret (Bolt on Type)
6” Chuck
Programmable Tailstock
Relocation Device
