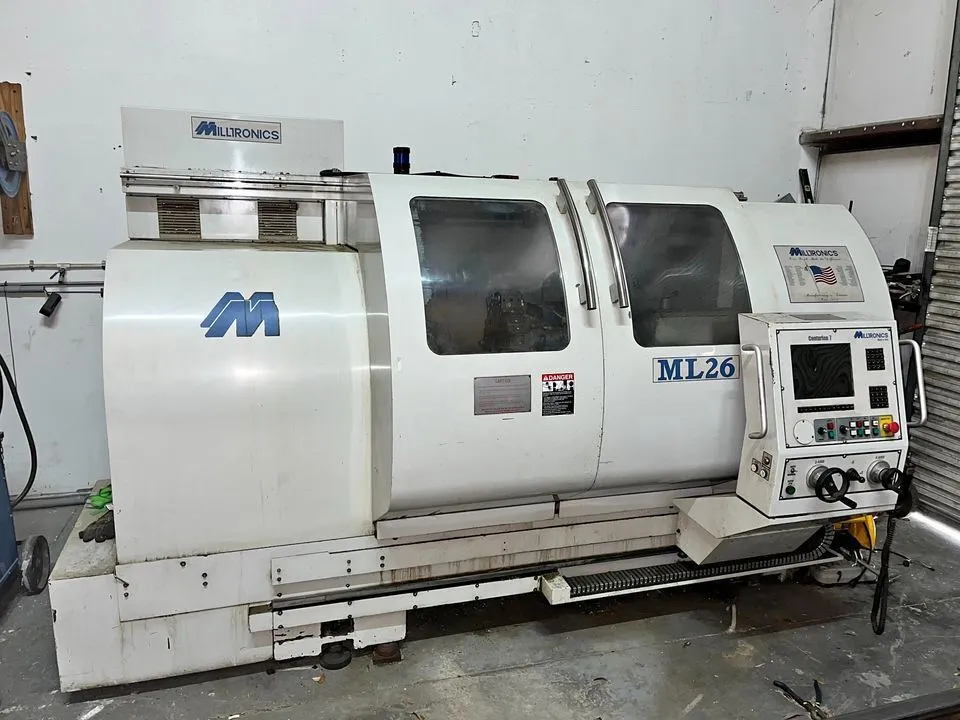

Milltronics ML26/40 CNC Lathe (2007)
Have one to sell?
ConditionUsed
1 available
2 Axis Flat Bed Design, A popular toolroom lathe size for job shops and customers who re-cut aluminum wheels for automobiles, the ML26/40 has a 27” swing, 40” length and 3.22” spindle bore. Featuring a 24 HP, 2,600 RPM spindle it produces 620 ft-lbs. of torque. Standard with an 8 station electro-mechanical turret. Options include chucks and chip conveyor.
Milltronics ML26/40 CNC Lathe (2007)
X/Z Travels
13/42 in
Swing Over Bed
27 in
Swing Over Gap
34.2 in
Gap Distance
12.75 in
Swing Over Cross
16.1 in
SPINDLE
Spindle Nose
A1-8
Spindle Bore
3.22 in
Spindle Range
40-2000 RPM
AC Spindle Motor
24/15 HP (2-Apeed Delta/WYE)
Spindle Torque
620 ft-lbs
Tailstock Quill Travel
8 in
Tailstock Quill Diameter
3.94 in
Tailstock Quill Taper
MT5
Automatic Turret
Tool Capacity
8
Tooling Size
1 in
Boring Bar Capacity
1.5 in
Tool Selection
Bi-Directional
MOTION
Rapid Traverse Rate
500 IPM
Max. Cutting Feed Rate
100 IPM
Positioning Accuracy
(+/- 0.00025 in)
Repeatability
0.0002 in
Axis Thrust Force
4000 lbs
GENERAL DETAILS
Machine Weight
9500 lbs
Machine Height
83 in
Footprint
129.5 x 100.5 in Nominal Operating (W x D)
Power Required
20 KVA / 48 Amps
Voltage Required
208-240 Volts / 3 Phase
- Centurion 7 CNC Control
- 12" Manual 3-Jaw Chuck
- 12 Position Turret
- Tailstock
- Manual/Electronic Handwheels
